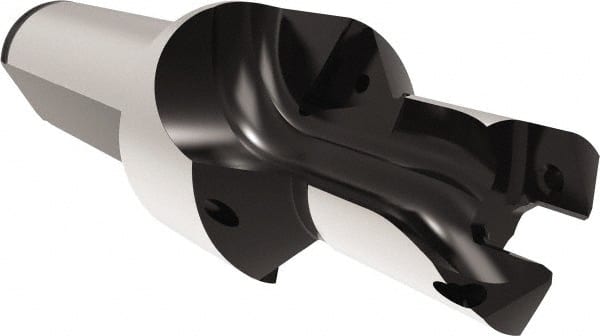

Allied Machine and Engineering - 15 to 15.99mm Diam, Straight Shank, 19.05mm Body Shank Diam, Combo Chamfer and Countersink Drill - TCMT 110204 Insert, 95.65mm OAL
Item #: 43937085
Brand: Allied Machine and Engineering
Model #: 60115C45-20FM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 15.99 |
| Maximum Drill Diameter (Decimal Inch) | 0.6295 |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Body Shank Diameter (mm) | 19.05 |
| Body Shank Diameter (Decimal Inch) | 0.7500 |
| Number of Drill Inserts | 1 |
| Insert Style | TCMT 110204 |
| Body Diameter (mm) | 26.99 |
| Body Diameter (Decimal Inch) | 1.0625 |
| Overall Length (mm) | 95.65 |
| Overall Length (Decimal Inch) | 3.7656 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 51.59 |
| Shank Length (Decimal Inch) | 2.0313 |
| Through Coolant | Through Coolant |
| Series | 15; GEN3SYS; GEN3SYS XT |
