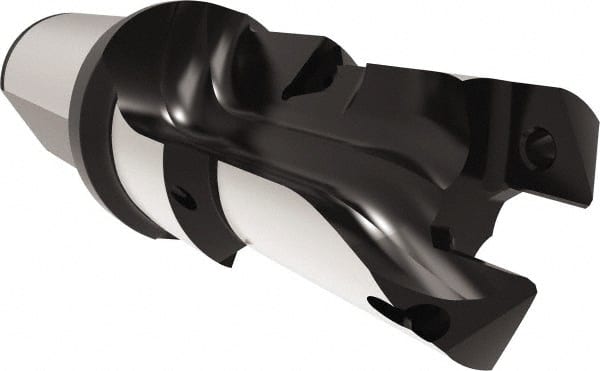

Allied Machine and Engineering - 32 to 35mm Diam, Straight Shank, 38.1mm Body Shank Diam, Combo Chamfer and Countersink Drill - TCMT 16T304 Insert, 133.35mm OAL
Item #: 43937168
Brand: Allied Machine and Engineering
Model #: 60132C45-40FM
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Straight Shank |
| Maximum Drill Diameter (mm) | 35.00 |
| Maximum Drill Diameter (Decimal Inch) | 1.3780 |
| Minimum Drill Diameter (mm) | 32.00 |
| Minimum Drill Diameter (Decimal Inch) | 1.2598 |
| Body Shank Diameter (mm) | 38.10 |
| Body Shank Diameter (Decimal Inch) | 1.5000 |
| Number of Drill Inserts | 1 |
| Insert Style | TCMT 16T304 |
| Body Diameter (mm) | 40.08 |
| Body Diameter (Decimal Inch) | 1.5781 |
| Overall Length (mm) | 133.35 |
| Overall Length (Decimal Inch) | 5.2500 |
| Insert Holding Method | Screw |
| Shank Length (mm) | 68.26 |
| Shank Length (Decimal Inch) | 2.6875 |
| Through Coolant | Through Coolant |
| Series | 32; GEN3SYS XT |
