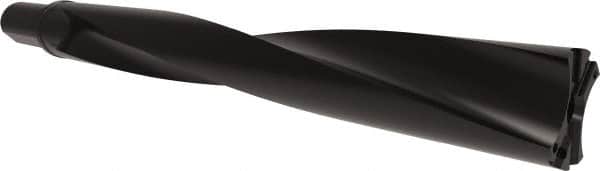

Allied Machine and Engineering - Series APX 63, 8xD, 2" Shank Diam, Drill Body - 24-1/8" Drill Body Length to Flange, W6308H Toolholder, 28-5/8" OAL, 24.125" Drill Body Length, Weldon Flat Shank, Through Coolant
Item #: 43941798
Brand: Allied Machine and Engineering
Model #: W6308H-200F
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 63 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Drill Body Length to Flange (Decimal Inch) | 24.1250 |
| Toolholder Style | W6308H |
| Overall Length (Decimal Inch) | 28.6250 |
| Gage Length (Decimal Inch) | 24.1250 |
| Shank Type | Weldon Flat |
| Shank Length (Decimal Inch) | 4.5000 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Size (Inch) | 1/4 |
