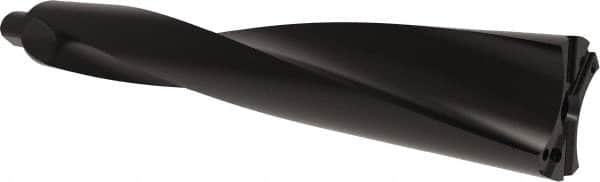

Allied Machine and Engineering - Series APX 89, 8xD, 50mm Shank Diam, Drill Body - 750.3mm Drill Body Length to Flange, W8908H Toolholder, 830.3mm OAL, 750.3mm Drill Body Length, Weldon Flat Shank, Through Coolant
Item #: 43941947
Brand: Allied Machine and Engineering
Model #: W8908H-50FM
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | APX 89 |
| Drill Depth by Diameter Ratio | 8xD |
| Shank Diameter (mm) | 50.00 |
| Shank Diameter (Decimal Inch) | 1.9685 |
| Drill Body Length to Flange (mm) | 750.30 |
| Drill Body Length to Flange (Decimal Inch) | 29.5394 |
| Toolholder Style | W8908H |
| Overall Length (mm) | 830.30 |
| Overall Length (Decimal Inch) | 32.6890 |
| Gage Length (mm) | 750.30 |
| Gage Length (Decimal Inch) | 29.5394 |
| Shank Type | Weldon Flat |
| Shank Length (mm) | 80.00 |
| Shank Length (Decimal Inch) | 3.1496 |
| Through Coolant | Through Coolant |
| Coolant Hole Thread Type | BSP |
| Coolant Hole Thread Size (Inch) | 1/4 |
