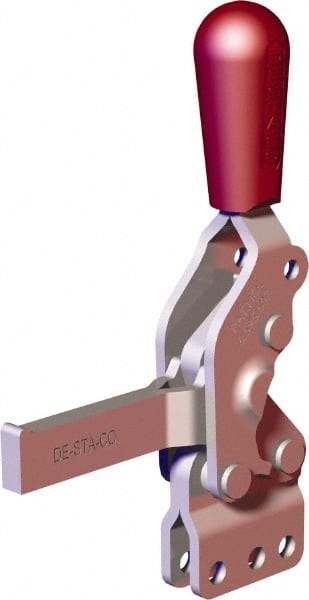

De-Sta-Co - 607 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 66° Handle Movement, 75° Bar Opening, Solid Bar, Straight Base, Carbon Steel
Item #: 44003325
Brand: De-Sta-Co
Model #: 2002-SB
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Solid Bars are designed to retain a spindle that is fixed to a specific position on the bar. The spindle retainers are commonly welded to the bar of the clamp at a customer specified position. Generally, the solid bar models have greater holding capacity than the equivalent U-bar model.
Carbon steel offers strength and rigidity during an application. It does not resist corrosion as well as stainless steel.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Bar Style | Solid |
| Base Style | Straight |
| Bar End Type | Closed |
| Holding Capacity (N) | 2700.00 |
| Holding Capacity (Lb.) | 606.98 |
| Length Distance Between Mount Holes (mm) | 22.86 |
| Length Distance Between Mount Holes (Decimal Inch) | 0.9 |
| Width Distance Between Mount Holes (mm) | 6.35 |
| Width Distance Between Mount Holes (Decimal Inch) | 0.2500 |
| Height Under Bar (mm) | 32.51 |
| Height Under Bar (Decimal Inch) | 1.2800 |
| Overall Height (mm) | 134.11 |
| Overall Height (Decimal Inch) | 5.2800 |
| Base Length (mm) | 34.54 |
| Base Length (Decimal Inch) | 1.3600 |
| Handle Style | Straight |
| Material | Carbon Steel |
| Handle Color | Red |
| Number of Mounting Holes | 6 |
| Mounting Hole Diameter (mm) | 5.59 |
| Mounting Hole Diameter (Decimal Inch) | 0.2200 |
| Front of Base To Tip Of Toggle Bar (mm) | 48.51 |
| Front of Base To Tip Of Toggle Bar (Decimal Inch) | 1.9100 |
| Bar Opening (Degrees) | 75.00 |
| Handle Movement (Degrees) | 66.00 |
| Maximum Mechanical Advantage | 11:1; 5:1 |
| Bar Width (Decimal Inch) | 0.5000 |
| Bar Width (mm) | 12.70 |
| Bar Thickness (mm) | 6.10 |
| Bar Thickness (Decimal Inch) | 0.2400 |
| Handle Width (mm) | 23.88 |
| Handle Width (Decimal Inch) | 0.9400 |
| Includes | Bolt Retainer |
