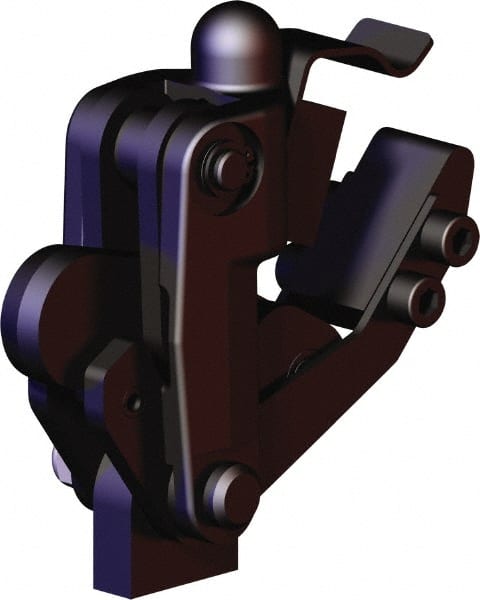

De-Sta-Co - 1,574 Lb Holding Capacity, Vertical Handle, Manual Hold Down Toggle Clamp - 200° Bar Opening, Weldable Base, Oxide Finish, Forged Alloy Steel
Item #: 44004042
Brand: De-Sta-Co
Model #: 503-MBLSC
Exact Tooling IR#: 04
Features and Benefits
Vertical handles are designed with a handle that is 90 degrees, or perpendicular to the clamping bar. They are manufactured with holding capacities of up to 6,000 pounds.
Forged alloy steel is a matrix composed of two or more alloy elements. It is heat and corrosion resistant.
| Product Specifications | |
|---|---|
| Handle Orientation | Vertical |
| Base Style | Weldable |
| Holding Capacity (N) | 7000.00 |
| Holding Capacity (Lb.) | 1573.66 |
| Overall Height (mm) | 69.85 |
| Overall Height (Decimal Inch) | 2.7500 |
| Base Length (mm) | 28.45 |
| Base Length (Decimal Inch) | 1.1200 |
| Base Width (mm) | 9.91 |
| Base Width (Decimal Inch) | 0.3900 |
| Material | Forged Alloy Steel |
| Finish/Coating | Oxide |
| Bar Opening (Degrees) | 200.00 |
