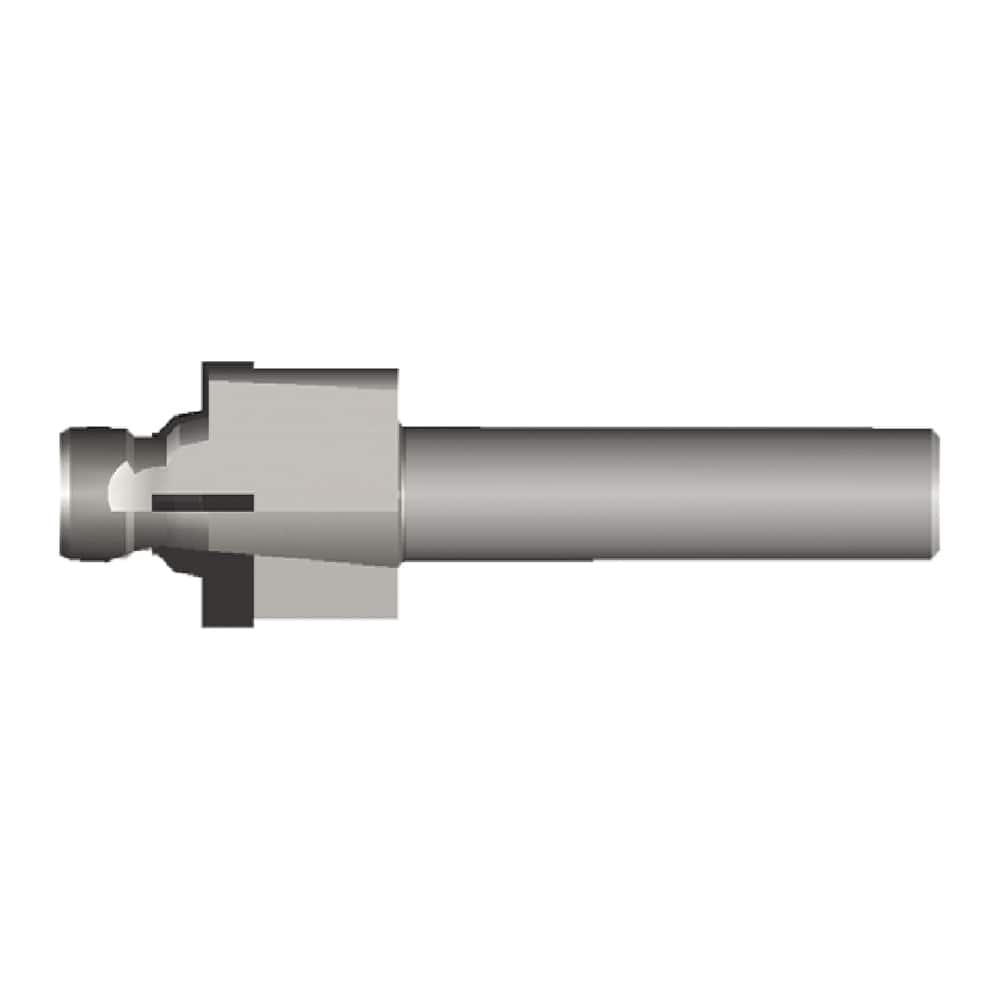

Porting Tool: 3.49″ Spotface Dia, 2″ Tube OD, Plain, Tube Dash #32 2.412″ Min Pilot Dia, 0.660″ Pilot Length, 4 Flutes, MS 16142, SAE J1926 & SAE J514
Item #: 44065076
Brand: Scientific Cutting Tools
Model #: MS16142-32SA
Product Specifications
| Spotface Diameter (Decimal Inch) | 3.4900 |
| Tube Outside Diameter Compatibility (Inch) | 2 |
| Pilot Type | Plain |
| Tube Dash Number | 32 |
| Minimum Pilot Diameter (Decimal Inch) | 2.4120 |
| Pilot Length | 0.6600 |
| Overall Length (Decimal Inch) | 4.6000 |
| Number Of Flutes | 4 |
| Standards | SAE J1926; MS 16142; SAE J514 |
| Identification Groove | No |
| Seal Angle | 15 |
| Thread Type | UN |
| Flute Type | Straight |
| Shank Diameter (Decimal Inch) | 1-1/4 |
| Shank Length (Decimal Inch) | 2.5000 |
| Maximum Pilot Diameter (Decimal Inch) | 2.5895 |
| Head Length (Decimal Inch) | 2.1000 |
| Workpiece Compatibility | Tubes |
| Coating/Finish | AlTiN+ |
