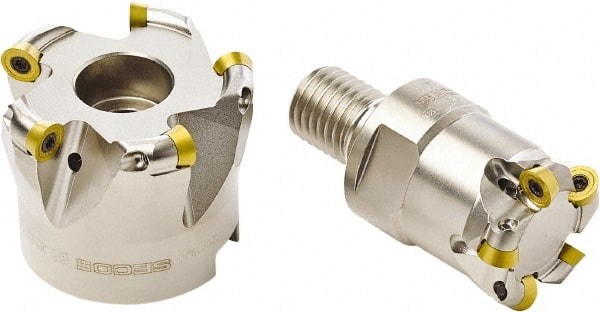

Seco - 50mm Cut Diam, 4mm Max Depth, 22mm Arbor Hole, 7 Inserts, RD... 0803 Insert Style, Indexable Copy Face Mill - 17,300 Max RPM, 40mm High, Through Coolant
Item #: 44169514
Brand: Seco
Model #: 00130
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 50.00 |
| Cutting Diameter (Decimal Inch) | 1.9685 |
| Maximum Depth of Cut (mm) | 4.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1575 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Overall Height (mm) | 40.00 |
| Overall Height (Decimal Inch) | 1.5748 |
| Number of Cutter Inserts | 7 |
| Insert Compatibility | RD... 0803 |
| Through Coolant | Yes |
| Maximum RPM | 17300 |
| Insert Holding Method | Screw |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Insert Inscribed Circle (mm) | 8.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.3150 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | RDHT 0803M0-E03; RDHW 0803M0-MD03; RDKW 0803M0T-MD05 |
