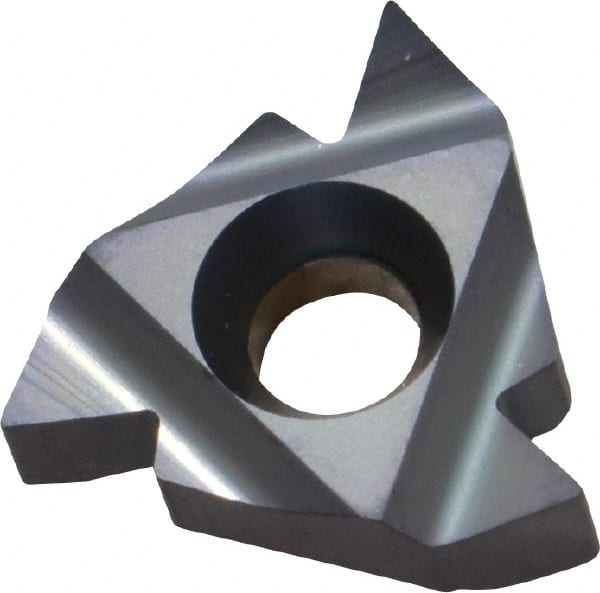

Hertel - 22IR Internal Right Hand 7-5 Partial Profile 60° Laydown Threading Insert - Grade HG225TR, TiAlN Coated Carbide
Item #: 44173912
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 22IR |
| Insert Hand | Right Hand |
| Thread Type | Internal |
| Thread Standard | Partial Profile 60 |
| Manufacturer's Grade | HG225TR |
| Threads Per Inch | 7-5 |
| Pitch (mm) | 3.5-5.0 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Coating | TiAlN |
| Coating Process | PVD |
