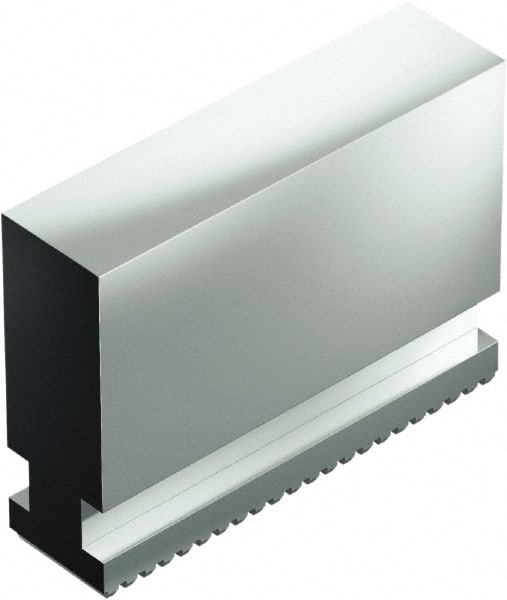

Schunk - 10" Max Chuck Capacity, Serrated Interface, Square Soft Lathe Chuck Jaw - 3 Jaw, Steel, 0mm Btw Mount Hole Ctrs, 52mm High, 0mm Groove
Item #: 44459485
Brand: Schunk
Model #: 164114
Exact Tooling IR#: 04
Features and Benefits
Square end jaws are blanks that can be machined to final size.
| Product Specifications | |
|---|---|
| Jaw Type | Square |
| Material | Steel |
| Jaw Interface Type | Serrated |
| Maximum Compatible Chuck Diameter (Inch) | 10 |
| Maximum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Maximum Compatible Chuck Diameter (mm) | 250.00 |
| Minimum Compatible Chuck Diameter (mm) | 250.00 |
| Minimum Compatible Chuck Diameter (Decimal Inch) | 10.0000 |
| Minimum Compatible Chuck Diameter (Inch) | 10 |
| Overall Height (mm) | 52.00 |
| Overall Height (Decimal Inch) | 2.0472 |
| Groove Width (mm) | 0.00 |
| Groove Width (Decimal Inch) | 0.0000 |
| Distance Between Mount Hole Centers (mm) | 0.00 |
| Distance Between Mount Hole Centers (Decimal Inch) | 0.0000 |
| Tongue Width (Decimal Inch) | 0.0000 |
| Jaw End Shape | Square |
| Number of Jaws | 3 |
