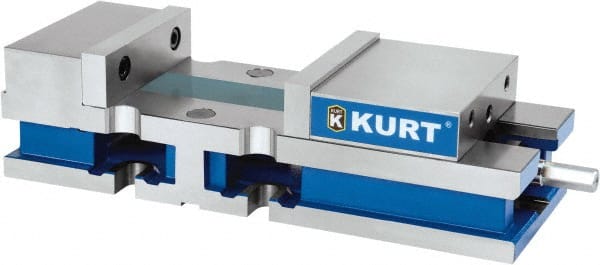

Kurt - 8" Jaw Width, 10-1/4" Jaw Opening Capacity, Horizontal Stationary Machine Vise - Manual Operation, 1 Station, 24" Long x 6" High x 1" Deep, 6" Jaw Height, 100 Lb Max Clamp Force, Ductile Iron
Item #: 44613685
Brand: Kurt
Model #: 3800V
Exact Tooling IR#: 04
Features and Benefits
Horizontal vises slide from side to side during milling operations.
Stationary vises are used for machining straight surfaces. They can be fastened to the machine at either a parallel or at a right angle.
| Product Specifications | |
|---|---|
| Jaw Width (Inch) | 8 |
| Jaw Opening Capacity (Inch) | 10-1/4 |
| Throat Depth (Inch) | 1 |
| Orientation Type | Horizontal |
| Number of Stations | 1 |
| Base Motion Type | Stationary |
| Operation Type | Manual |
| Jaw Height (mm) | 152.40 |
| Jaw Height (Inch) | 6 |
| Jaw Height (Decimal Inch) | 6.0000 |
| Base Length (mm) | 609.60 |
| Base Length (Inch) | 24 |
| Base Length (Decimal Inch) | 24.0000 |
| Jaw Material | Steel |
| Precision | Yes |
| Overall Length (mm) | 609.60 |
| Overall Length (Inch) | 24 |
| Overall Length (Decimal Inch) | 24.0000 |
| Base Width (mm) | 203.20 |
| Base Width (Inch) | 8 |
| Base Width (Decimal Inch) | 8.0000 |
| Vise Material | Ductile Iron |
| Base Height (mm) | 152.40 |
| Base Height (Inch) | 6 |
| Base Height (Decimal Inch) | 6.0000 |
| Maximum Clamping Force (Ft/Lb) | 100.00 |
| Maximum Clamping Force (psi) | 6550.00 |
| Overall Height (mm) | 152.40 |
| Overall Height (Inch) | 6 |
| Overall Height (Decimal Inch) | 6.0000 |
