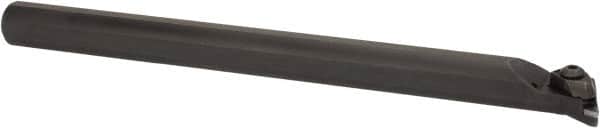

Hertel - IPR.5., A-IKQC Internal Left Hand Indexable Profiling Toolholder - 3/4" Shank Width, 10" Long, Steel, Through Coolant
Item #: 44659373
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Steel is a commonly used material as an econmical alternative for short-run jobs and its ability to be altered for a specific task.
| Product Specifications | |
|---|---|
| Internal or External | Internal |
| Hand of Holder | Left Hand |
| Rake | Neutral |
| Insert Compatibility | IPR.5. |
| Toolholder Style | A-IKQC |
| Series | HertelNotch |
| Toolholder Material | Steel |
| Through Coolant | Yes |
| Shank Width/Diameter (Decimal Inch) | 0.7500 |
| Overall Length (Inch) | 10 |
| Overall Length (Decimal Inch) | 10.0000 |
| Insert Holding Method | Clamp |
| Minimum Hole Diameter (Decimal Inch) | 0.9800 |
| Center to Cutting Edge (Decimal Inch) | 0.5620 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
