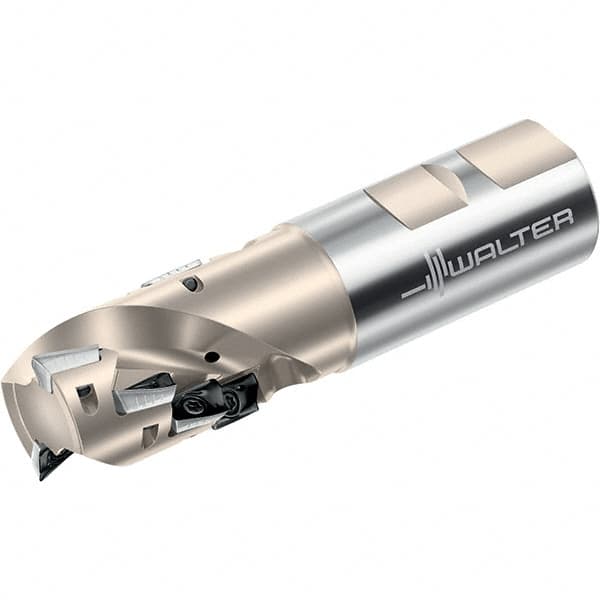

Walter - 1-1/4" Cut Diam, 1.693" Max Depth of Cut, 1-1/4" Shank Diam, 4.801" OAL, Indexable Square Shoulder Helical End Mill - Multiple Insert Styles, Weldon Shank, 90° Lead Angle, Through Coolant, Series Xtra-tec
Item #: 44699551
Brand: Walter
Model #: 5335582
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Decimal Inch) | 1.2500 |
| Cutting Diameter (Inch) | 1-1/4 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1-1/4 |
| Shank Diameter (Decimal Inch) | 1.2500 |
| Overall Length/Projection (Decimal Inch) | 4.8010 |
| Lead Angle | 90 |
| Series | Xtra-tec |
| Through Coolant | Coolant Through |
| Maximum Depth of Cut (Decimal Inch) | 1.6930 |
| Number of Cutter Inserts | 8 |
| Insert Holding Method | Screw |
| End Mill Type | Helical End Mill |
| Cutter Style | F4138 |
| Number of Flutes | 2 |
| Head Length (Decimal Inch) | 2.5200 |
| Weldon Flat | Yes |
| Insert Compatibility | ADGT 120416R-D67; ADGT 120430R-D67; ADGT 1204PER-D51; ADGT 1204PER-D56; ADGT 1204PER-D67; ADGT 1204PER-F56; ADGT 1204PER-G77; ADHT 120416R-G88; ADHT 120425R-G88; ADHT 120430R-G88; ADHT 120440R-G88; ADHT 1204PER-G88; ADMT 120404R-F56; ADMT 120408R-D56; ADM |
| Shank Length (Decimal Inch) | 2.2810 |
