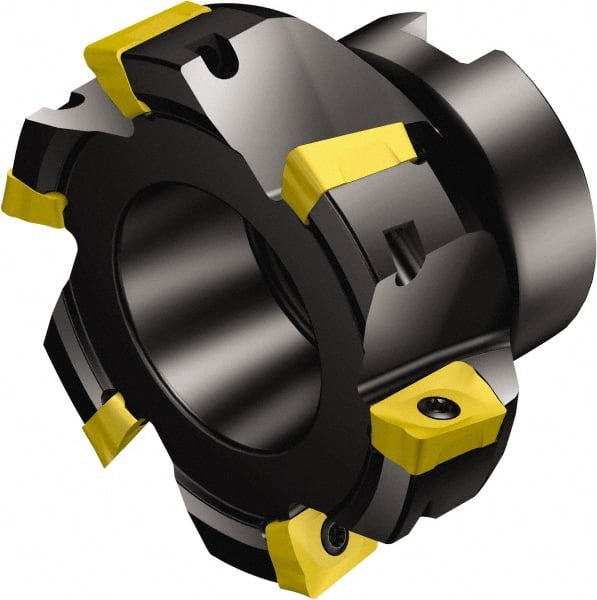

Sandvik Coromant - 6 Inserts, 80mm Cut Diam, 27mm Arbor Diam, 15.7mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 90° Lead Angle, 50mm High, R390-17.. Insert Compatibility, Series CoroMill 390
Item #: 44717940
Brand: Sandvik Coromant
Model #: 5745534
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 80.00 |
| Cutting Diameter (Decimal Inch) | 3.1496 |
| Arbor Hole Diameter (mm) | 27.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.0630 |
| Lead Angle | 90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | R390-17.. |
| Series | CoroMill 390 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 15.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.6181 |
| Cutting Direction | Right Hand |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw/Clamp |
| Cutter Style | R390 |
| Maximum RPM | 14400 |
| Cutting Edge Length (Decimal Inch) | 0.6181 |
| ISO Number | R390080Q2717M |
| Complete Insert Compatibility | R390-17.. |
| Toolholder Material | Steel |
