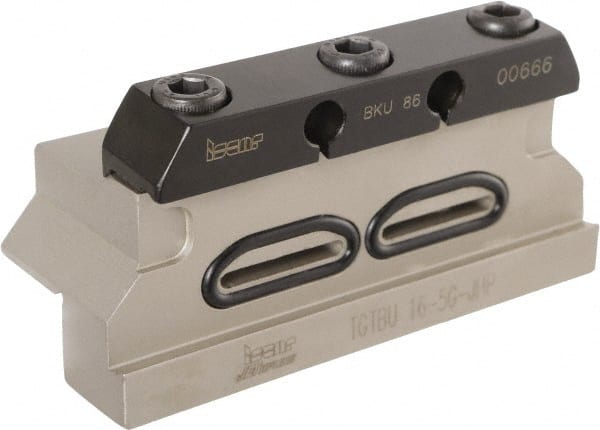

Iscar - Tool Block Style TGTBU, 26mm Blade Height, 86mm OAL, 43mm OAH, Indexable Cutoff Blade Tool Block - 16mm Shank Height, 16.9mm Shank Width, Through Coolant, Series JetHPLine
Item #: 44720829
Brand: Iscar
Model #: 2302490
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Tool Block Style | TGTBU |
| Blade Height (mm) | 26.00 |
| Blade Height (Decimal Inch) | 1.0236 |
| Manufacturers Catalog Number | TGTBU 16-5G-JHP |
| Overall Length (mm) | 86.00 |
| Overall Length (Decimal Inch) | 3.3858 |
| Overall Height (mm) | 43.00 |
| Overall Height (Decimal Inch) | 1.6929 |
| Shank Height (mm) | 16.00 |
| Shank Height (Decimal Inch) | 0.6299 |
| Shank Width (mm) | 16.90 |
| Shank Width (Decimal Inch) | 0.6654 |
| Through Coolant | Through Coolant |
| Reversible | No |
| Modular | No |
| Series | JetHPLine |
| Overall Width (mm) | 35.60 |
| Overall Width (Decimal Inch) | 1.4016 |
| Complete Blade Compatibility | TGFH 26C-3-JHP; TGFH 26C-4-JHP |
| Head Length/Projection (mm) | 18.70 |
| Head Length/Projection (Decimal Inch) | 0.7362 |
| Shoulder Height (Decimal Inch) | 0.5157 |
| Complete Insert Compatibility | TAG L1.4J-8D; TAG L1.4JS-10D; TAG L2C-6D; TAG L2J-15D; TAG L2J-6D; TAG L2JS-15D; TAG L2JS-6D; TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-15D; TAG L3JS-6D; TAG L4C-4D; TAG L4J-4D; TAG L5C-4D; TAG L5J-4D; TAG L6.3C-4D; TAG L6.3J-4D; TAG N1.4 |
