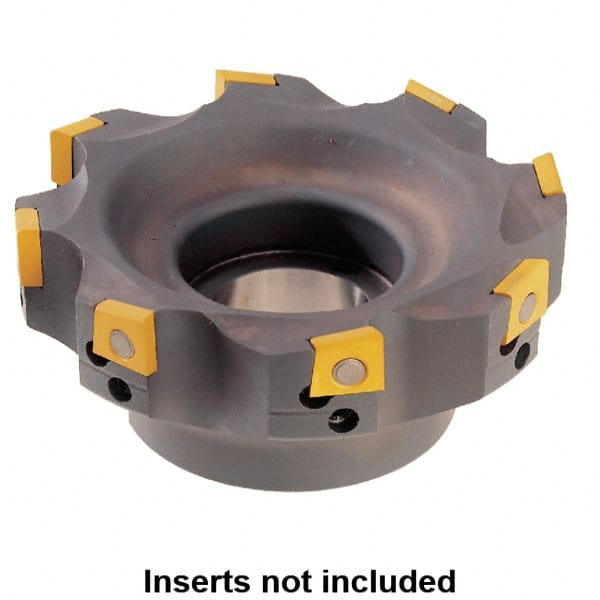

Kennametal - 7 Inserts, 100mm Cut Diam, 32mm Arbor Diam, 14mm Max Depth of Cut, Indexable Square-Shoulder Face Mill - 0/90° Lead Angle, 50mm High, 4.215.. Insert Compatibility, Series Fix-Perfect
Item #: 44749711
Brand: Kennametal
Model #: 1191216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 100.00 |
| Cutting Diameter (Decimal Inch) | 3.9370 |
| Arbor Hole Diameter (mm) | 32.00 |
| Arbor Hole Diameter (Decimal Inch) | 1.2598 |
| Lead Angle | 0/90 |
| Overall Height (mm) | 50.00 |
| Overall Height (Decimal Inch) | 1.9685 |
| Insert Compatibility | 4.215.. |
| Series | Fix-Perfect |
| Maximum Depth of Cut (mm) | 14.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.5512 |
| Number of Cutter Inserts | 7 |
| Insert Holding Method | Clamp |
| Cutter Style | P8 |
| Number of Flutes | 7 |
| Rake | Positive |
| Hub Diameter (mm) | 60.00 |
| Hub Diameter (Decimal Inch) | 2.3622 |
| Maximum Body Diameter (Decimal Inch) | 3.8465 |
| Maximum RPM | 3200 |
| Complete Insert Compatibility | 4.21503R6 |
