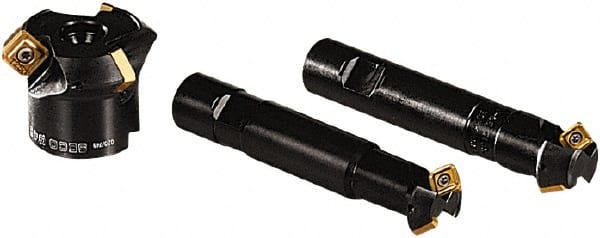

Seco - 54mm Cut Diam, 22mm Arbor Hole, 7mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 3 Inserts, SPMX 12T3 Insert, Right Hand Cut, 3 Flutes, Series R220.49
Item #: 44804771
Brand: Seco
Model #: 15110
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 54.00 |
| Cutting Diameter (Decimal Inch) | 2.1260 |
| Arbor Hole Diameter (mm) | 22.00 |
| Arbor Hole Diameter (Decimal Inch) | 0.8661 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 1.5748 |
| Overall Height (mm) | 40.00 |
| Insert Compatibility | SPMX 12T3 |
| Series | R220.49 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2756 |
| Number of Cutter Inserts | 3 |
| Insert Holding Method | Screw |
| Number of Flutes | 3 |
| Cutting Rake Angle | 0 |
| Rake | Neutral |
| Hub Diameter (Decimal Inch) | 1.8504 |
| Hub Diameter (mm) | 47.00 |
| Keyway Width (mm) | 10.40 |
| Keyway Width (Decimal Inch) | 0.4094 |
| Maximum Body Diameter (Decimal Inch) | 1.5748 |
| Maximum RPM | 13400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | SPMX 12T308-75; SPMX 12T3AP-75 |
