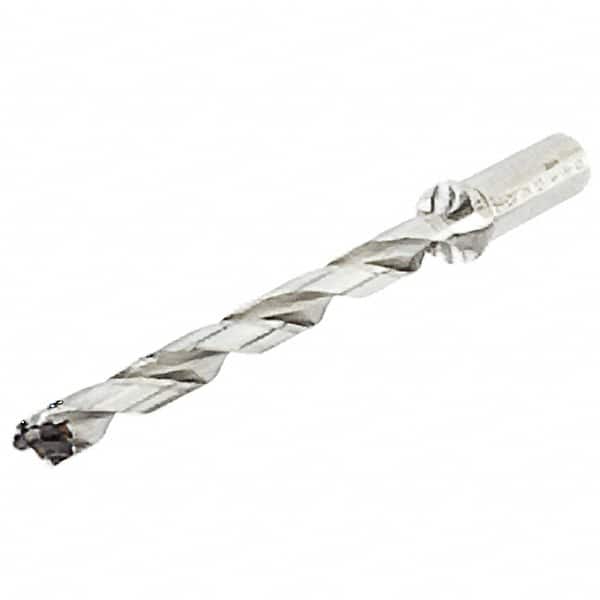

Iscar - 13mm to 13.4mm Diam, 12xD, 156mm Max Depth, 16mm Shank Diam, 221mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 13 Seat Size, 44823706 Toolholder, Series SumoCham
Item #: 44823706
Brand: Iscar
Model #: 3202846
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 13.00 |
| Maximum Drill Diameter (mm) | 13.40 |
| Drill Depth by Diameter Ratio | 12xD |
| Maximum Drill Depth (mm) | 156.00 |
| Shank Diameter (mm) | 16.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 13 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Straight Shank |
| Body Length (mm) | 173.00 |
| Overall Length (mm) | 221.00 |
| Shank Length (mm) | 48.00 |
