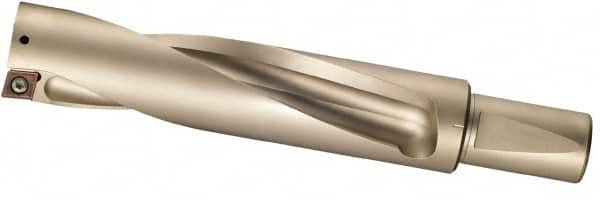

Sumitomo - 111mm Max Drill Depth, 4xD, 27mm Diam, Indexable Insert Drill - 2 Inserts, 32mm Shank Diam, Whistle Notch Shank
Item #: 44854396
Brand: Sumitomo
Model #: 2A00178
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | WDX |
| Drill Diameter (mm) | 27.00 |
| Drill Diameter (Decimal Inch) | 1.0630 |
| Maximum Drill Depth (mm) | 111.00 |
| Maximum Drill Depth (Decimal Inch) | 4.3701 |
| Shank Type | Whistle Notch |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Number of Drill Inserts | 2 |
| Overall Length/Projection (mm) | 191.00 |
| Overall Length/Projection (Decimal Inch) | 7.5197 |
| Insert Compatibility | WDXT 073506 |
| Flute Length (mm) | 111.00 |
| Flute Length (Decimal Inch) | 4.3701 |
| Body Length (Decimal Inch) | 5.1575 |
| Body Length (mm) | 131.00 |
| Shank Length (mm) | 60.00 |
| Shank Length (Decimal Inch) | 2.3622 |
| Collar Diameter (mm) | 41.00 |
| Collar Diameter (Decimal Inch) | 1.6142 |
| Series | SumiDrill |
