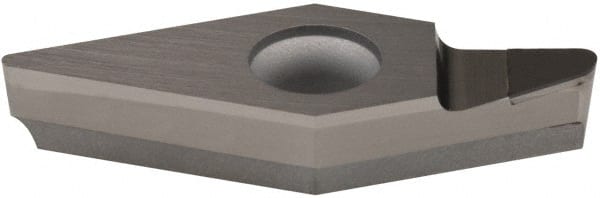

Hertel - HT-VCMX331 Grade HT420CD Polycrystalline Diamond (PCD) Turning Insert - Uncoated, Diamond, 3/8" Inscr Circle, 3/16" Thick, 1/64" Corner Radius
Item #: 44879484
Brand: Hertel
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline Diamond (PCD) is a synthetic diamond. It is shock resistant, wear resistant and allows for cutting at high speeds on nonferrous material.
| Product Specifications | |
|---|---|
| Insert Style | HT-VCMX |
| Insert Size | 331 |
| Material | Polycrystalline Diamond (PCD) |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | HT420CD |
| Coating | Uncoated |
| Material Grade | C2 |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Insert Holding Method | Screw |
| Shape | Diamond |
