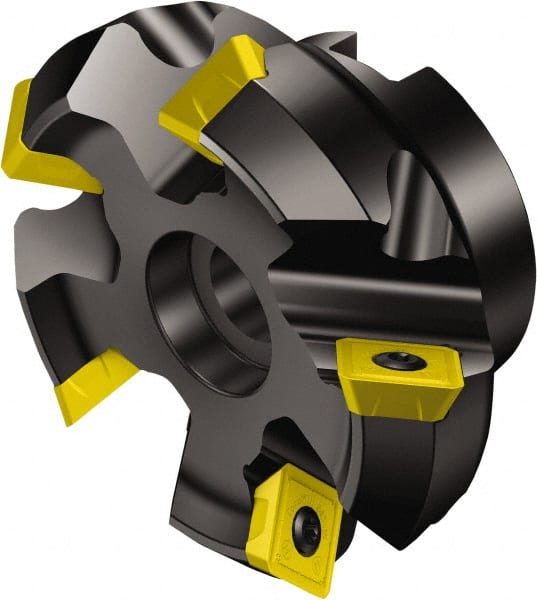

Sandvik Coromant - 6" Cut Diam, 1-1/2" Arbor Hole, 0.3937" Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 9 Inserts, R245-18T6.. Insert, Right Hand Cut, Series CoroMill 245
Item #: 44882157
Brand: Sandvik Coromant
Model #: 5740085
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Insert Compatibility | R245-18T6.. |
| Series | CoroMill 245 |
| Through Coolant | No |
| Maximum Depth of Cut (Decimal Inch) | 0.3937 |
| Number of Cutter Inserts | 9 |
| Cutter Style | RA245..Rxx |
| Keyway Width (Decimal Inch) | 0.6331 |
| Maximum RPM | 4400 |
| Cutting Direction | Right Hand |
| Complete Insert Compatibility | R245-18T6.. |
| Toolholder Material | Steel |
