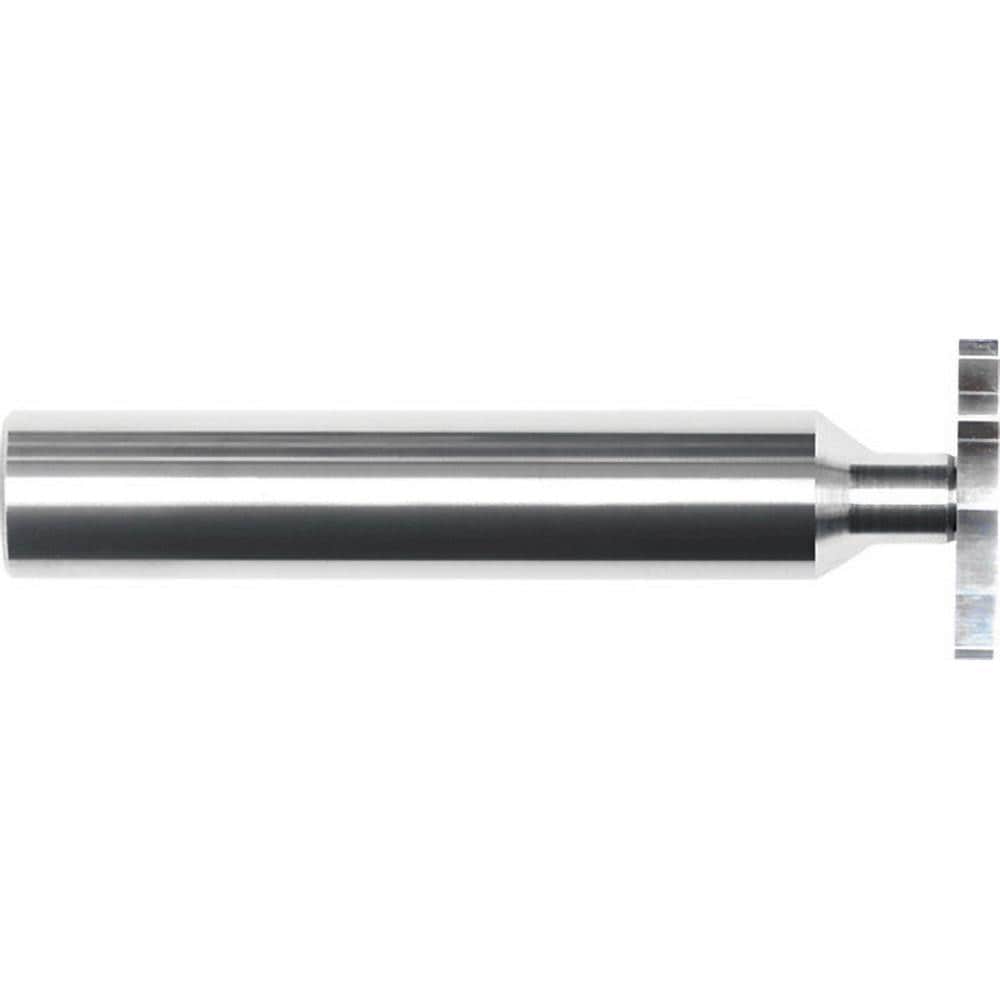

Woodruff Keyseat Cutter: 5/8" Cut Dia, 5/32" Cut Width, 3/8" Shank Dia, Straight Tooth
Item #: 87838702
Brand: Internal Tool
Model #: 78-0917
Product Specifications
| Connection Type | Shank |
| Cutter Material | Solid Carbide |
| Cutter Diameter (Inch) | 5/8 |
| Cutter Diameter (Decimal Inch) | 0.6250 |
| Tooth Configuration | Straight |
| Cutting Width (Inch) | 5/32 |
| Cutting Width (Decimal Inch) | 0.1562 |
| Weldon Flat | No |
| Neck Diameter (Decimal Inch) | 0.2500 |
| Neck Length (Decimal Inch) | 0.2500 |
| Shank Diameter (Inch) | 3/8 |
| Shank Diameter (Decimal Inch) | 0.3750 |
| Overall Length (Inch) | 2-3/4 |
| Overall Length (Decimal Inch) | 2.7500 |
| Primary Workpiece Material | Non-Ferrous Metal; Stainless Steel; Cast Iron; Superalloys & Titanium; Steel |
| Primary Workpiece Material Code | P; S; K; M; N |
| Cutter Material Grade | Micrograin |
| Series | 78 |
| Coating/Finish | Bright/Uncoated |
| Number Of Teeth | 10 |
| UNSPSC Code | 23241631 |
| Country of Origin | UNITED STATES |
