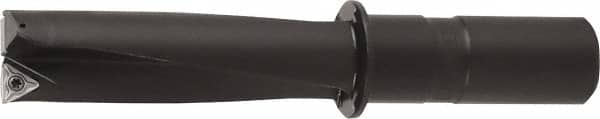

Kyocera - 2-1/4" Max Drill Depth, 0.766" Diam, Indexable Insert Drill - 2 Inserts, 5/8" Shank Diam, Whistle Notch Shank
Item #: 45047339
Brand: Kyocera
Model #: 8601103
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | SDR |
| Drill Diameter (Decimal Inch) | 0.7660 |
| Maximum Drill Depth (Decimal Inch) | 2.2500 |
| Shank Type | Whistle Notch |
| Shank Diameter (Decimal Inch) | 0.6250 |
| Cutting Direction | Right Hand |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 0.7660 |
| Overall Length/Projection (Decimal Inch) | 4.6300 |
| Insert Compatibility | TCMT 18152 |
| Body Length (Decimal Inch) | 2.7500 |
| Shank Length (Decimal Inch) | 1.8800 |
| Collar Diameter (Decimal Inch) | 0.6250 |
| Series | Stinger Drill |
