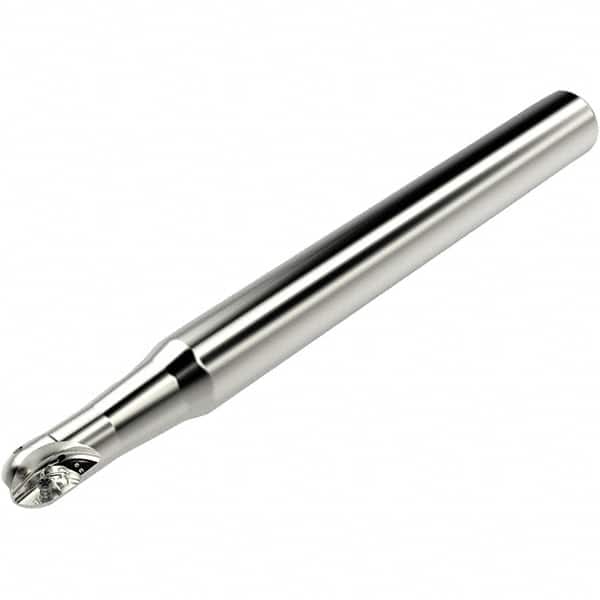

Seco - 12mm Cut Diam, 10mm Max Depth of Cut, 16mm Shank Diam, 160mm OAL, Indexable Ball Nose End Mill - 10mm Head Length, Straight Shank, K2 Toolholder, 218.20-060 Insert
Item #: 45092673
Brand: Seco
Model #: 02627903
Exact Tooling IR#: 04
Features and Benefits
Straight shanks are used for general purpose machining and commonly have a larger diameter than taper shanks.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 12.00 |
| Maximum Depth of Cut (mm) | 10.00 |
| Shank Type | Straight Shank |
| Shank Diameter (mm) | 16.00 |
| Number of Ball Nose Inserts Used on Toolholder | 2 |
| Insert Style | 218.20-060 |
| Toolholder Style | K2 |
| Series | 218.20 |
| Overall Length (mm) | 160.00 |
| Overall Length (Decimal Inch) | 6.3000 |
| Insert Holding Method | Screw |
| Toolholder Material | Steel |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Tapered Neck | No |
| Number of Flutes | 2 |
| Head Length (mm) | 10.00 |
| Head Length (Decimal Inch) | 0.3930 |
| Number of Side Inserts Used on Toolholder | 0 |
| Neck Diameter (Decimal Inch) | 0.6300 |
| Maximum RPM | 30000 |
