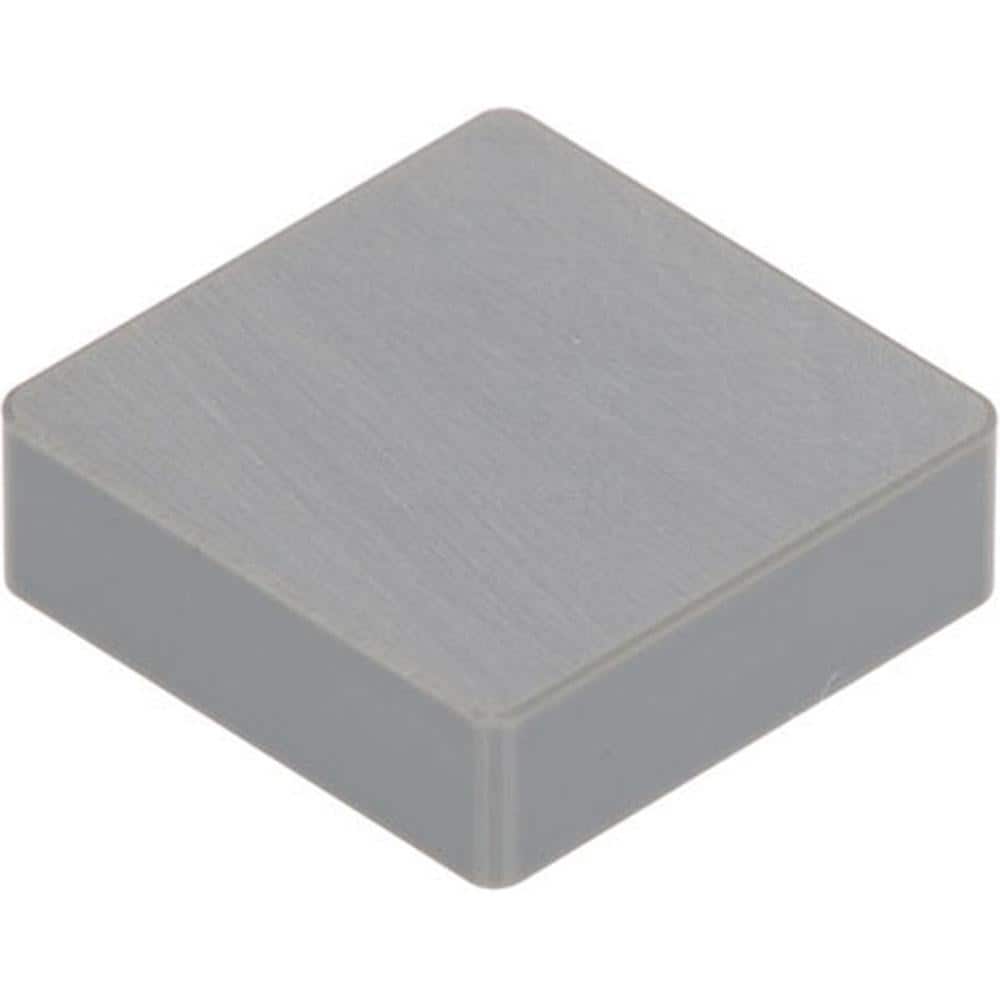

Turning Insert: CNGN452 LX11, Ceramic TiN Finish, Neutral, 0.5080″ Long, 1/2″ Inscribed Circle, 0.0310″ Corner Radius, N/A Diamond, Series CNGN

Item #: 45110723
Brand: Tungaloy
Model #: 6801897

Product Specifications

Insert Style CNGN

Insert Shape Code C

Insert Size Code 452

Insert Shape Diamond

Clearance Code N

Tolerance Code G

Insert Material Ceramic

Manufacturer Grade LX11

Maximum Depth of Cut (Decimal Inch) 0.0787

Inscribed Circle (Inch) 1/2

Inscribed Circle (Decimal Inch) 0.5000

Insert Holding Method Clamp

Insert Hand Neutral

Insert Thickness (Decimal Inch) 0.3130

Corner Radius (Decimal Inch) 0.0310

Relief Angle 0

Series CNGN

Coating Process PVD

Rake Negative

Insert Length (Decimal Inch) 0.5080

Number Of Cutting Edges 4

Primary Workpiece Material Hard Material

Primary Workpiece Material Code H

Chip Breaker N

Coating/Finish TiN
