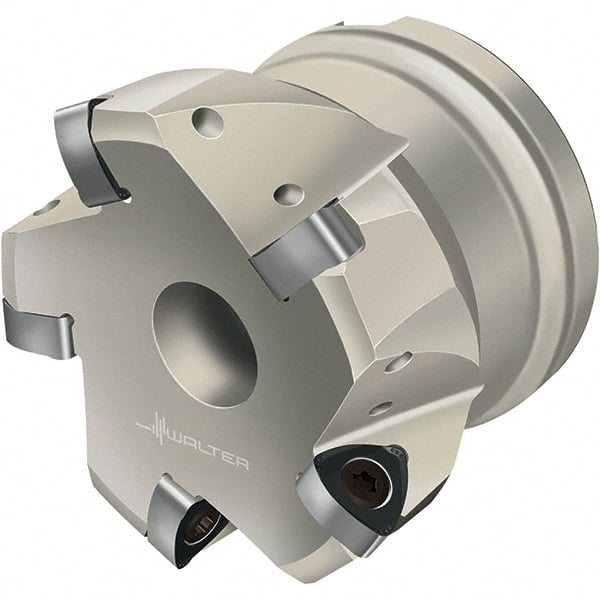

Walter - 76.2mm Cut Diam, 25.4mm Arbor Hole, 2mm Max Depth of Cut, Indexable Chamfer & Angle Face Mill - 6 Inserts, P23696 Insert, Right Hand Cut, 6 Flutes, Through Coolant, Series Xtra-tec
Item #: 45112653
Brand: Walter
Model #: 5882956
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 76.20 |
| Cutting Diameter (Decimal Inch) | 3.0000 |
| Arbor Hole Diameter (mm) | 25.40 |
| Arbor Hole Diameter (Decimal Inch) | 1.0000 |
| Overall Height (Decimal Inch) | 1.9690 |
| Insert Compatibility | P23696 |
| Series | Xtra-tec |
| Through Coolant | Yes |
| Maximum Depth of Cut (mm) | 2.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0790 |
| Number of Cutter Inserts | 6 |
| Insert Holding Method | Screw |
| Cutter Style | F4030 |
| Number of Flutes | 6 |
| Cutting Direction | Right Hand |
| Cutting Edge Length (Decimal Inch) | 0.5510 |
| Maximum Insert Radius (Decimal Inch) | 0.0630 |
| Complete Insert Compatibility | P23696-2.0 |
