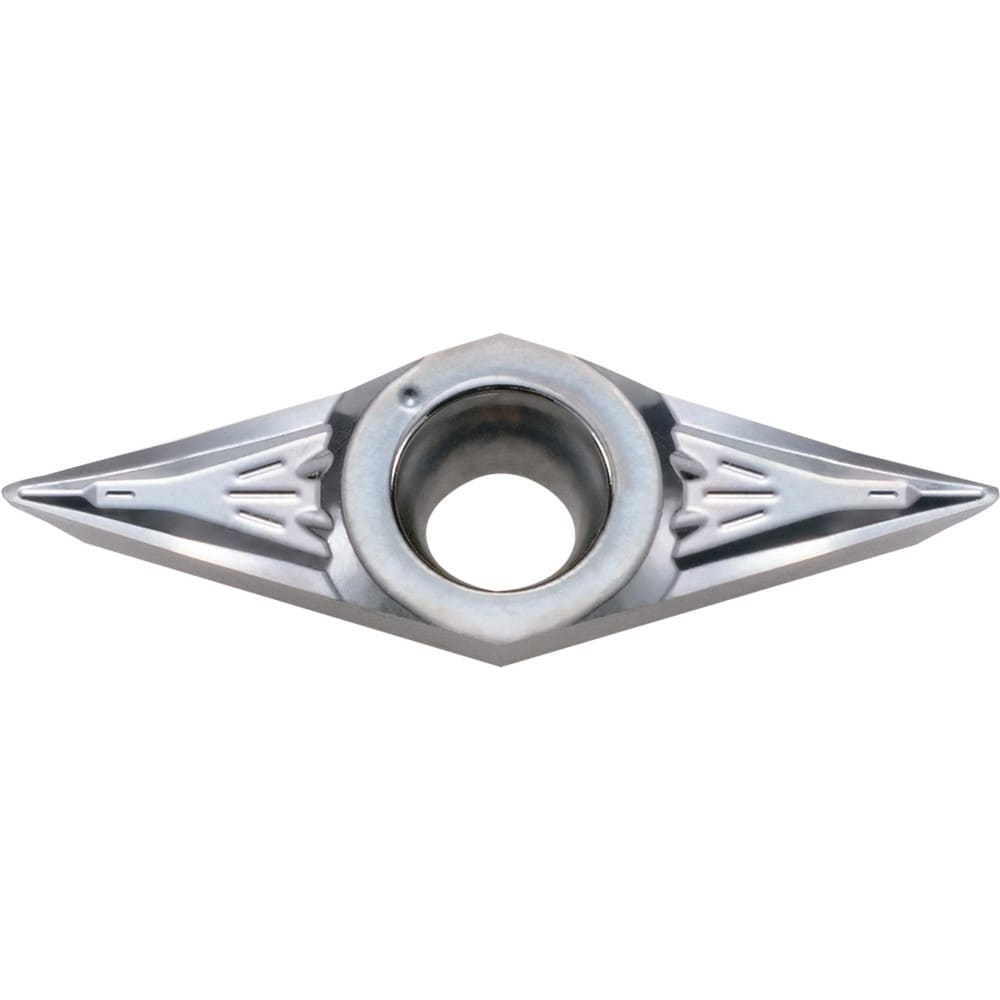

Turning Insert: VCGT2202SKS PR1725, Carbide
Item #: 18246058
Brand: Kyocera
Model #: TLM40232
Product Specifications
| ANSI Insert Code | VCGT2202 |
| ISO Insert Code | VCGT110301 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (Inch) | 1/256 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 35 |
| Manufacturer Grade | PR1725 |
| Coating/Finish | MEGACOAT NANO PLUS |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2907 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.8720 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Iso Code | VCGT110301MFP-SKS |
| Manufacturers Catalog Number | TLM40232 |
| Material Grade | P01; M20; M30; P30; M10; P10; P20; M01 |
| Coating Classification | PVD |
| Chip Breaker | SKS |
| Rake Angle | 11 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | VCGT2202MFPSKSPR1725 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
| ANSI Size Code | 2202 |
| ISO Size Code | 110301 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 2202 |
| ANSI Insert Code | VCGT2202 |
| ISO Insert Code | VCGT110301 |
| Relief Angle | 7 |
| Insert Style | VCGT |
| Corner Radius (Inch) | 1/256 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Included Angle | 35 |
| Manufacturer Grade | PR1725 |
| Coating/Finish | MEGACOAT NANO PLUS |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Inch) | 1/8 |
| Insert Thickness (Decimal Inch) | 0.1250 |
| Series | ISOI |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Insert Material | Carbide |
| Insert Shape | V - Diamond (Rhombic) 35-Deg |
| Chip Breaker Operation | Finishing |
| Grade Characteristics | Stainless Steel (M) - High Wear-Resistance to Moderate Wear-Resistance and Toughness; Steel (P) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | V |
| Hole Diameter (Decimal Inch) | 0.1102 |
| Maximum Depth of Cut (Decimal Inch) | 0.2907 |
| Insert Holding Method | Screw |
| Width (Inch) | 1/4 |
| Clearance Code | C |
| Tolerance Code | G |
| Coating Process | PVD |
| Length Range (Decimal Inch) | 0.7000 - 10.0000 |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.8720 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | P; M |
| Secondary Workpiece Material | Stainless Steel; Steel |
| Secondary Workpiece Material Code | P; M |
| Iso Code | VCGT110301MFP-SKS |
| Manufacturers Catalog Number | TLM40232 |
| Material Grade | P01; M20; M30; P30; M10; P10; P20; M01 |
| Coating Classification | PVD |
| Chip Breaker | SKS |
| Rake Angle | 11 |
| Cutting Edge Style | Sharp |
| Industry Standard Number | VCGT2202MFPSKSPR1725 |
| Width (Decimal Inch - 4 Decimals) | 0.2500 |
| Multi-Use Tool | Yes |
| Full Radius | No |
| Multi-Use Application | External Turning; Back Boring; Facing; Copying; Profiling; Undercutting; Internal Facing |
| ANSI Size Code | 2202 |
| ISO Size Code | 110301 |
| UNSPSC Code | 23242107 |
| Insert Size Code | 2202 |
| MSC Part # | 18246058 |
| Mfr Part # | TLM40232 |
| Country of Origin Country of Origin is subject to change | VARIOUS |
