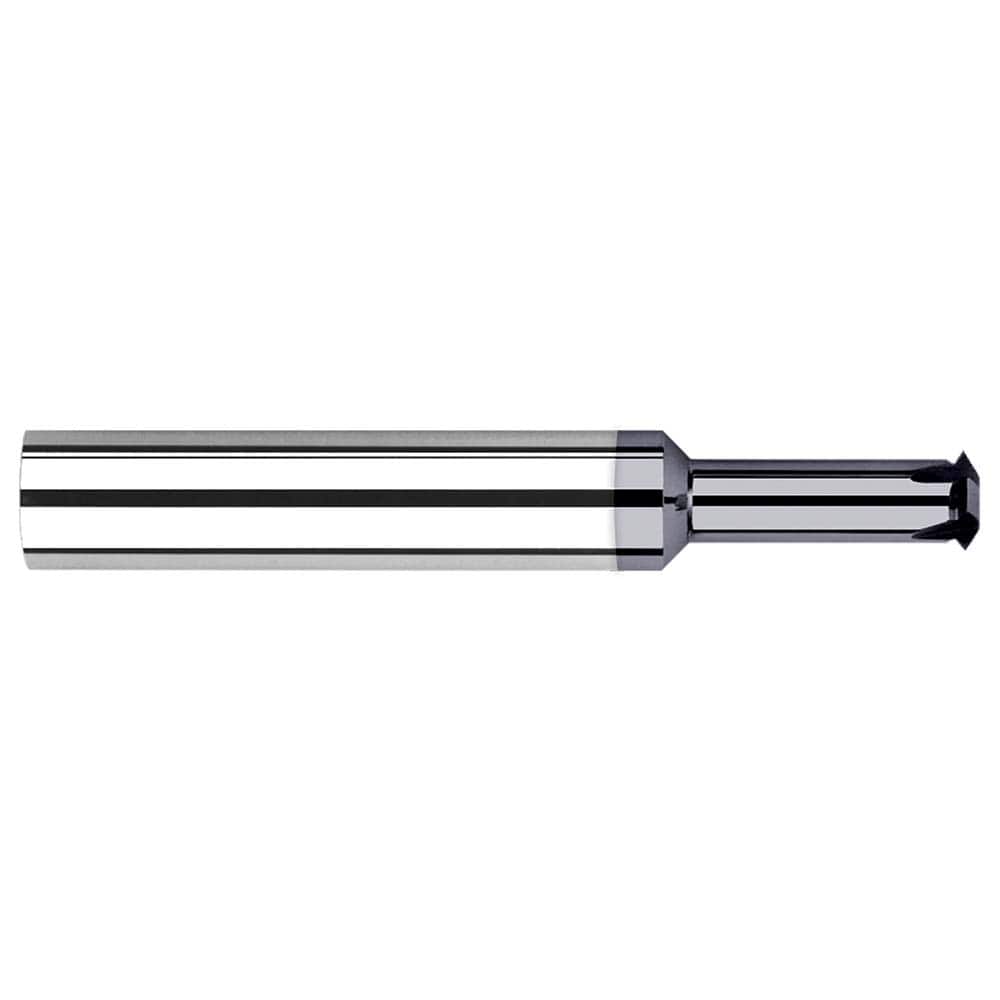

Harvey Tool - 0 TPI, Internal/External Single Profile Thread Mill
Item #: 45141181
Brand: Harvey Tool
Model #: 54255-C3
Product Specifications
| Maximum Threads Per Inch | 48 |
| Minimum Threads Per Inch | 18 |
| Thread Type | Internal/External |
| Minimum Nominal Diameter (Inch) | 5/16 |
| Cutting Diameter (Inch) | 0.2400 |
| Shank Diameter (Inch) | 1/4 |
| Material | Solid Carbide |
| Number of Flutes | 4 |
| Neck Diameter (Decimal Inch) | 0.1600 |
| Neck Length (Decimal Inch) | 1.0000 |
| Thread Size | 5/16-18 - 5/16-48 |
| Overall Length (Decimal Inch) | 2.50000 |
| Overall Length (Inch) | 2-1/2 |
| Thread Standard | UN 60 Degrees |
| Finish/Coating | AlTiN |
