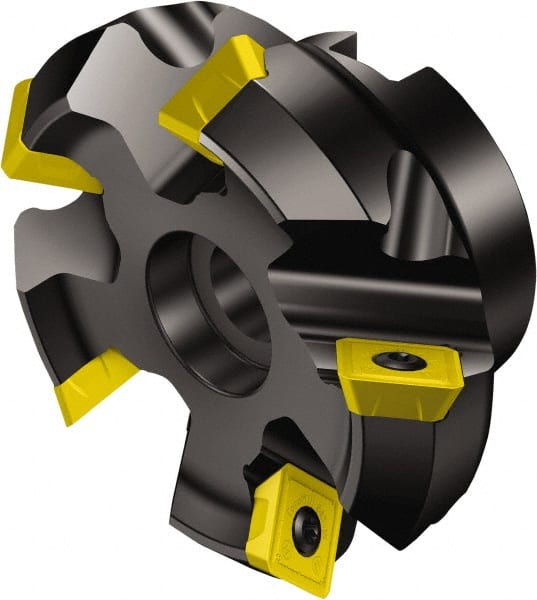

Sandvik Coromant - 6" Cut Diam, 1-1/2" Arbor Hole, 6.1mm Max Depth of Cut, 45° Indexable Chamfer & Angle Face Mill - 10 Inserts, R245-12T3 Insert, Series CoroMill 245
Item #: 45168739
Brand: Sandvik Coromant
Model #: 5740082
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (Inch) | 6 |
| Cutting Diameter (Decimal Inch) | 6.0000 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Arbor Hole Diameter (Decimal Inch) | 1.5000 |
| Lead Angle | 45 |
| Overall Height (Decimal Inch) | 2.4803 |
| Overall Height (mm) | 63.00 |
| Insert Compatibility | R245-12T3 |
| Series | CoroMill 245 |
| Through Coolant | No |
| Maximum Depth of Cut (mm) | 6.10 |
| Number of Cutter Inserts | 10 |
