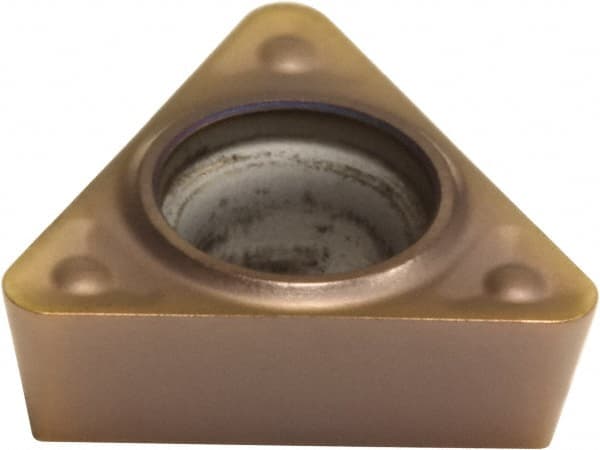

Sumitomo - TPMT221 ENF Grade AC510U Carbide Turning Insert - TiAlN/AlCrN Finish, 60° Triangle, 1/4" Inscr Circle, 1/8" Thick, 1/64" Corner Radius
Item #: 45199148
Brand: Sumitomo
Model #: 19HVWC7
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TPMT |
| Insert Size | 221 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.2500 |
| Inscribed Circle (Inch) | 1/4 |
| Thickness (Inch) | 1/8 |
| Thickness (Decimal Inch) | 0.1250 |
| Corner Radius (Inch) | 1/64 |
| Corner Radius (Decimal Inch) | 0.0156 |
| Manufacturer's Grade | AC510U |
| Coating | TiAlN/AlCrN |
| Chip Breaker | ENF |
| Hole Diameter (Decimal Inch) | 0.1300 |
| Rake | Neutral |
| Rake Angle | 0 |
| Relief Angle | 11 |
| Proprietary Coating Designation | Super ZX |
| Coating Process | PVD |
| Included Angle | 60 |
| Insert Holding Method | Screw |
| Shape | Triangle |
