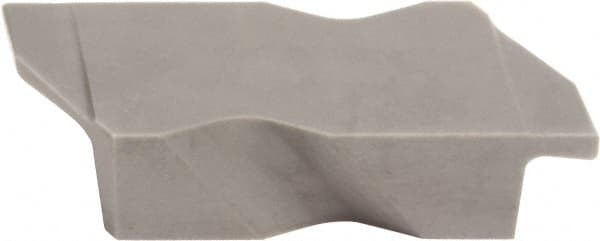

Sumitomo - 3062SG Grade SN2000K, 1/16" Cutting Width Ceramic Grooving Insert - 3/32" Max Depth of Cut, Neutral, 0.005 to 0.01" Corner Radius
Item #: 45208881
Brand: Sumitomo
Model #: U103910
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | SG |
| Insert Size | 3062 |
| Material | Ceramic |
| Cutting Width (Decimal Inch) | 0.0620 |
| Maximum Depth of Cut (Decimal Inch) | 0.0940 |
| Manufacturer's Grade | SN2000K |
| Insert Hand | Neutral |
| Cutting Height (Decimal Inch) | 0.3440 |
| Multi-Use Tool | No |
| Minimum Corner Radius (Decimal Inch) | 0.0050 |
| Corner Radius (Decimal Inch) | 0.005-0.010 |
| Series | SumiNotch |
| Overall Width (Decimal Inch) | 0.1950 |
