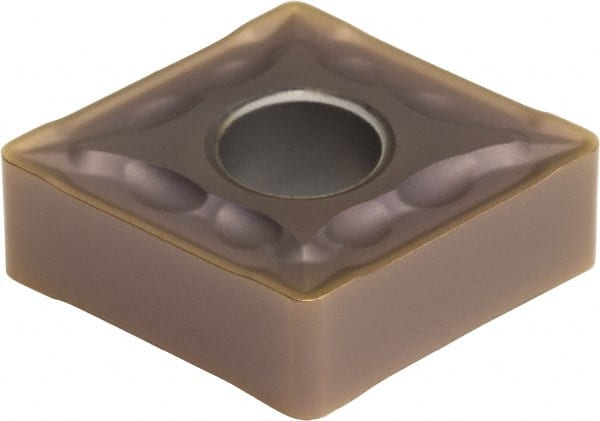

Sumitomo - CNMG544 EMU Grade AC520U Carbide Turning Insert - TiAlN/AlCrN Finish, 80° Diamond, 5/8" Inscr Circle, 1/4" Thick, 1/16" Corner Radius
Item #: 45219938
Brand: Sumitomo
Model #: 19HWAFM
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | CNMG |
| Insert Size | 544 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.6250 |
| Inscribed Circle (Inch) | 5/8 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | AC520U |
| Coating | TiAlN/AlCrN |
| Chip Breaker | EMU |
| Hole Diameter (Decimal Inch) | 0.2500 |
| Rake | Positive |
| Rake Angle | 4 |
| Relief Angle | 0 |
| Proprietary Coating Designation | Super ZX |
| Coating Process | PVD |
| Included Angle | 80 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
