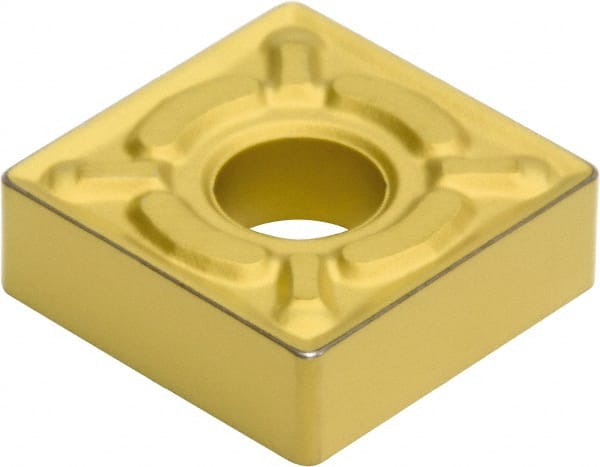

Sumitomo - SNMG433 EGU Grade AC700G Carbide Turning Insert - TiC Finish, 90° Square, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 45229879
Brand: Sumitomo
Model #: 19DY450
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SNMG |
| Insert Size | 433 |
| Material | Carbide |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | AC700G |
| Coating | TiC |
| Chip Breaker | EGU |
| Hole Diameter (Decimal Inch) | 0.2031 |
| Rake | Positive |
| Rake Angle | 7 |
| Relief Angle | 0 |
| Coating Process | CVD |
| Included Angle | 90 |
| Insert Holding Method | Pin & Clamp |
| Shape | Square |
