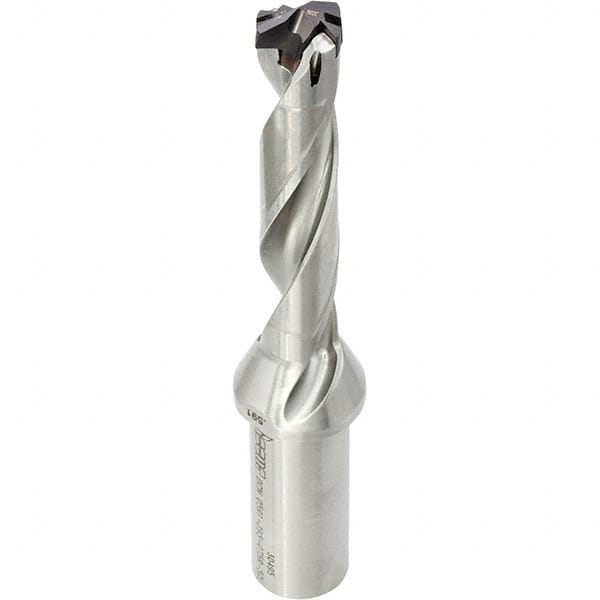

Iscar - 1.102 to 1.138" Diam, 5xD, 5.51" Max Depth, 1-1/2" Shank Diam, 9.96" OAL, Replaceable Tip Drill - ICK, ICM, ICP Insert, 28 Seat Size, DCN Toolholder, Series SumoCham
Item #: 45255023
Brand: Iscar
Model #: 3201747
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (Decimal Inch) | 1.1020 |
| Maximum Drill Diameter (Decimal Inch) | 1.1380 |
| Drill Depth by Diameter Ratio | 5xD |
| Maximum Drill Depth (Decimal Inch) | 5.5100 |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Insert Style | ICK; ICM; ICP |
| Insert Seat Size | 28 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (Decimal Inch) | 7.2800 |
| Overall Length (Decimal Inch) | 9.9600 |
| Shank Length (Decimal Inch) | 2.6800 |
