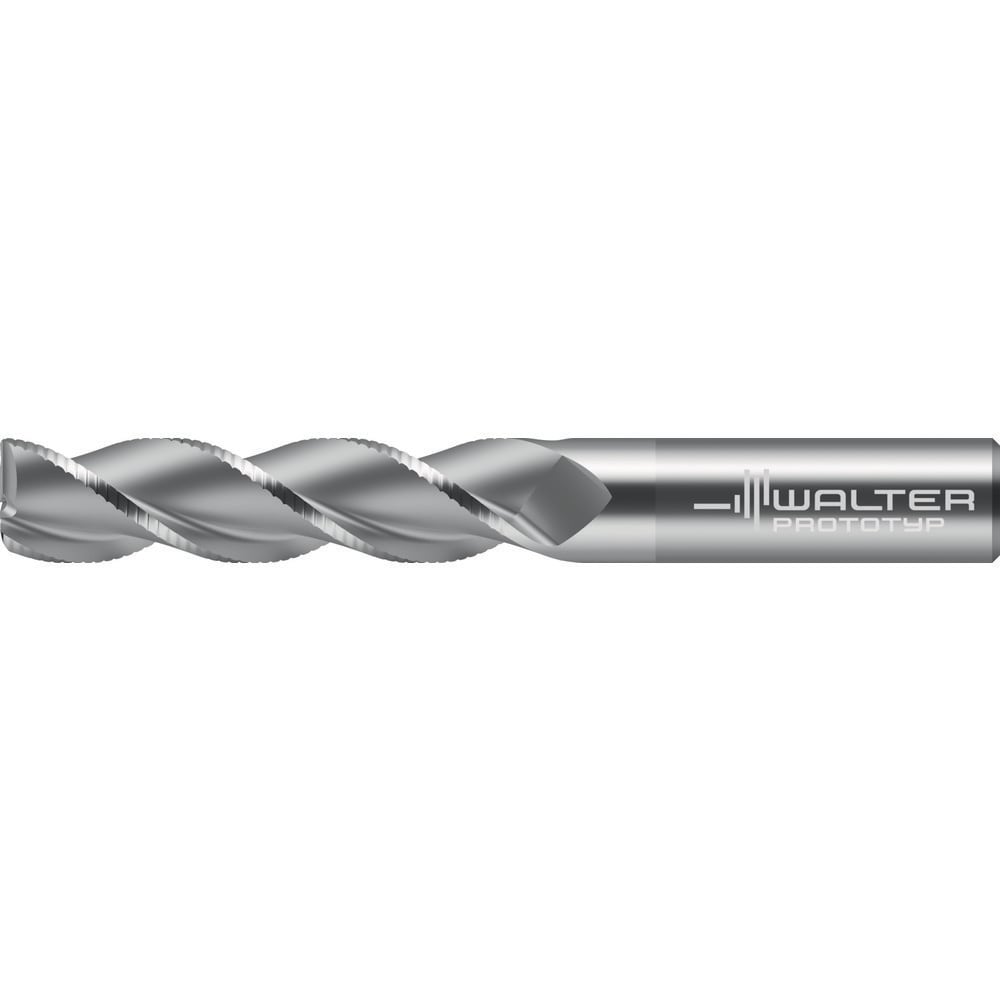

Corner Radius End Mill: 1" Dia, 1-1/2" LOC, 0.0300" Radius, 3 Flute, Solid Carbide
Item #: 09095993
Brand: Walter-Prototyp
Model #: 8416664
Product Specifications
| Mill Diameter (Inch) | 1 |
| Number Of Flutes | 3 |
| Length of Cut (Inch) | 1-1/2 |
| Single Or Double End | Single |
| End Mill Material | Solid Carbide |
| Coating/Finish | Bright/Uncoated |
| Overall Length (Inch) | 6 |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Corner Radius (Decimal Inch) | 0.0300 |
| Cutting Direction | Right Hand |
| Coolant Through | No |
| Chipbreaker | Yes |
| Extended Reach | Yes |
| Shank Type | Straight-Cylindrical |
| Material Removal Type | Roughing & Finishing |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Shank Diameter (Inch) | 1 |
| Reach Length (Decimal Inch) | 3.9134 |
| Shank Diameter Tolerance | h6 |
| Primary Workpiece Material | Non-Ferrous Metal |
| UNSPSC Code | 27112803 |
| Primary Workpiece Material Code | N |
| Series | MA268.A-3-R |
| Proprietary Coating Designation | WJ30UU |
| Manufacturers Catalog Number | MA268.25.4A3L076C-WJ30UU |
