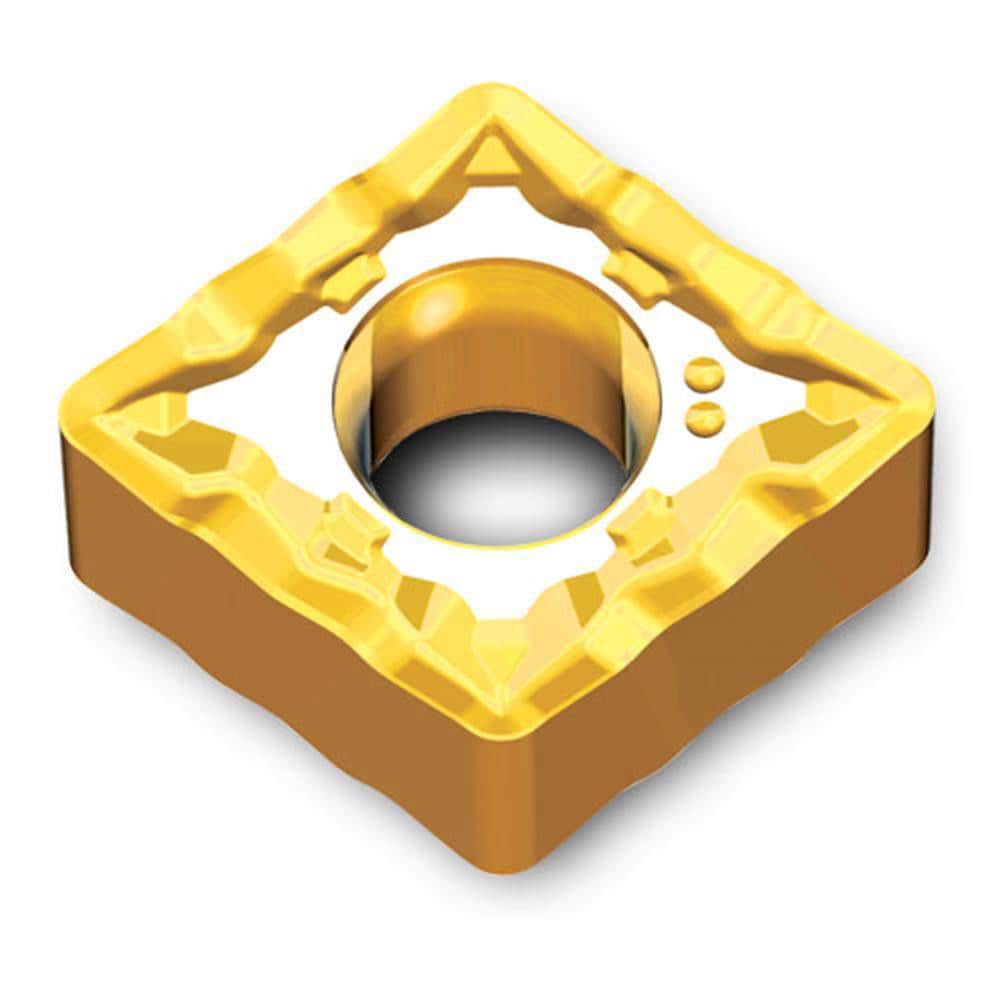

Turning Insert: CNMG332FT TT8115, Carbide
Item #: 13008073
Brand: Ingersoll Cutting Tools
Model #: 6118461
Product Specifications
| ANSI Insert Code | CNMG332 |
| ISO Insert Code | CNMG090408 |
| Relief Angle | 0 |
| Insert Style | CNMG |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80 |
| Manufacturer Grade | TT8115 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1870 |
| Series | CNMG |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Finishing |
| Side Clearance | Negative |
| Number Of Cutting Edges | 4 |
| Insert Shape Code | C |
| Maximum Depth of Cut (Decimal Inch) | 0.1250 |
| Insert Holding Method | Clamp |
| Clearance Code | N |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Negative |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Steel |
| Primary Workpiece Material Code | S |
| Iso Code | CNMG090408FT TT8115 |
| Chip Breaker | FT |
| ANSI Size Code | 332 |
| ISO Size Code | 090408 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 332 |
