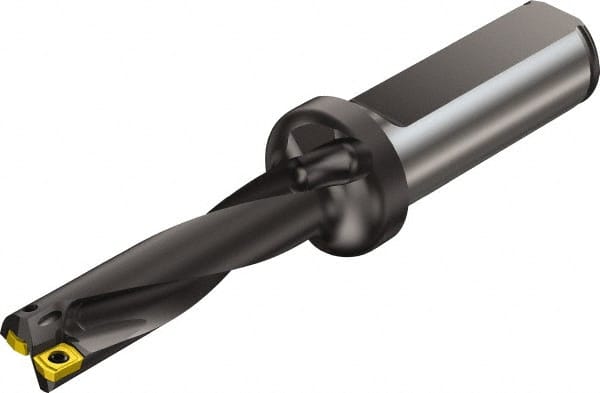

Sandvik Coromant - 156.21mm Max Drill Depth, 4xD, 1-1/2" Diam, Indexable Insert Drill - 2 Inserts, 1-1/2" Shank Diam, Straight Shank
Item #: 45336526
Brand: Sandvik Coromant
Model #: 5723996
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | A880..LXxx-04 |
| Drill Diameter (mm) | 38.10 |
| Drill Diameter (Inch) | 1-1/2 |
| Drill Diameter (Decimal Inch) | 1.5000 |
| Maximum Drill Depth (mm) | 156.21 |
| Maximum Drill Depth (Decimal Inch) | 6.1500 |
| Shank Type | Straight |
| Shank Diameter (Decimal Inch) | 1.5000 |
| Shank Diameter (Inch) | 1-1/2 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 4xD |
| Toolholder Material | Steel |
| Insert Size (mm) | 4 |
| Insert Size (Decimal Inch) | 0.1575 |
| Number of Drill Inserts | 2 |
| Maximum Drill Diameter (Decimal Inch) | 1.5876 |
| Maximum Drill Diameter (mm) | 38.10 |
| Overall Length/Projection (mm) | 253.69 |
| Overall Length/Projection (Decimal Inch) | 9.9879 |
| Insert Compatibility (Outside or Peripheral) | 07P |
| Flute Length (mm) | 178.67 |
| Flute Length (Decimal Inch) | 7.0343 |
| Body Length (Decimal Inch) | 6.1500 |
| Body Length (mm) | 156.21 |
| Shank Length (mm) | 70.00 |
| Shank Length (Decimal Inch) | 2.7559 |
| Radius (Decimal Inch) | 0.7500 |
| Series | CoroDrill 880 |
