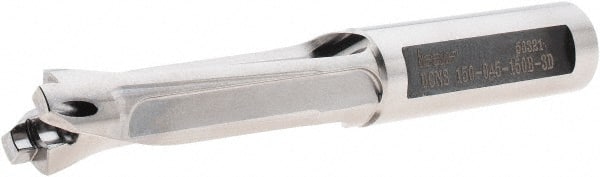

Iscar - 15mm to 5/8" Diam, 3xD, 45mm Max Depth, 15mm Shank Diam, 107.7mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 15 Seat Size, 45353497 Toolholder, Series UniSumoCham
Item #: 45353497
Brand: Iscar
Model #: 3203018
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | UniSumoCham |
| Minimum Drill Diameter (mm) | 15.00 |
| Minimum Drill Diameter (Decimal Inch) | 0.5906 |
| Maximum Drill Diameter (mm) | 15.90 |
| Maximum Drill Diameter (Decimal Inch) | 0.6260 |
| Drill Depth by Diameter Ratio | 3xD |
| Maximum Drill Depth (Decimal Inch) | 1.7717 |
| Maximum Drill Depth (mm) | 45.00 |
| Shank Diameter (mm) | 15.00 |
| Shank Diameter (Decimal Inch) | 0.5906 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 15 |
| Toolholder Style | DCNS |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 62.70 |
| Body Length (Decimal Inch) | 2.4685 |
| Overall Length (mm) | 107.70 |
| Overall Length (Decimal Inch) | 4.2401 |
| Shank Length (mm) | 45.00 |
| Shank Length (Decimal Inch) | 1.7717 |
