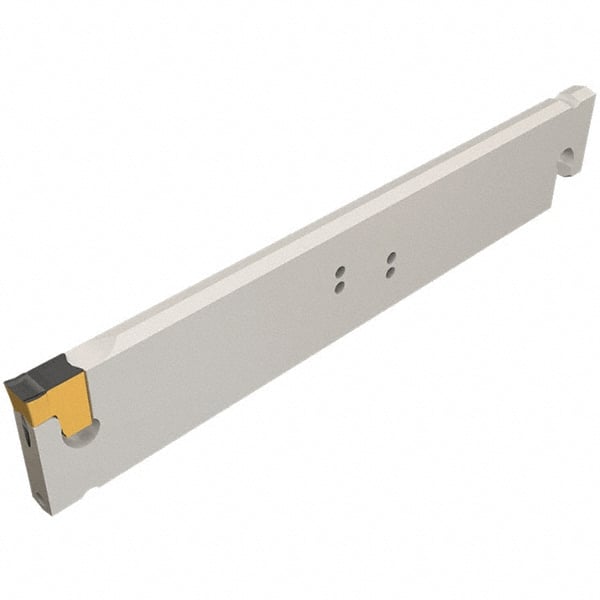

Iscar - 2.2047" Blade Height, 6mm Blade Width, 260mm OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGSU Blade, Tang-GripIQ Series
Item #: 45371333
Brand: Iscar
Model #: 2302249
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 56.00 |
| Blade Height (Decimal Inch) | 2.2047 |
| Blade Width (mm) | 6.00 |
| Blade Overall Length (mm) | 260.00 |
| Blade Style | TGSU |
| Insert Style | TAG N-C/W/M; TAG N-J/JS/JT |
| Insert Width (mm) | 6.80 |
| Insert Width (Decimal Inch) | 0.2677 |
| Series | Tang-GripIQ |
| Insert Seat Size | 6 |
| Tool Block/Toolholder Style | TGTBU |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 8.6600 |
| Cutting Height (mm) | 53.60 |
| Cutting Height (Decimal Inch) | 2.1102 |
| Minimum Insert Width (mm) | 6.80 |
| Minimum Insert Width (Decimal Inch) | 0.2677 |
| Maximum Insert Width (mm) | 7.50 |
| Maximum Insert Width (Decimal Inch) | 0.2953 |
| Complete Insert Compatibility | TAG N7JT; TAG N7W |
| Complete Tool Block/Toolholder Style Compatibility | TGTBU 20-35; TGTBU 25-35; TGTBU 32-35; TGTBU 32-35 HD; TGTBU 40-35 |
