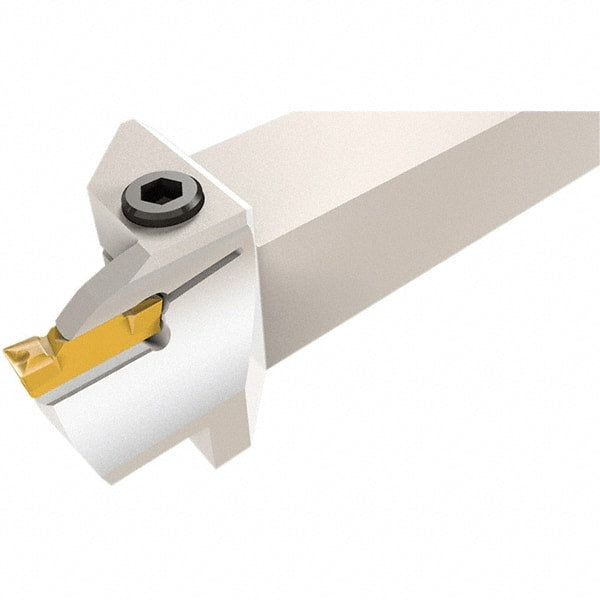

Iscar - HFH, External, Right Hand, 17mm Max Depth of Cut, 5mm Max Groove Width, Indexable Grooving Tool Holder - DGN.., GRIP, HFP.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 140mm OAL
Item #: 45372570
Brand: Iscar
Model #: 2500033
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Right Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 140.00 |
| Toolholder Style | HFH |
| Insert Compatibility | DGN..; GRIP; HFP.. |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 21.00 |
| Maximum Groove Outside Diameter (mm) | 31.00 |
| Minimum Axial Groove Inside Diameter(mm) | 28.00 |
| Head Height (mm) | 30.00 |
| Head Length (mm) | 34.00 |
| Shank Length (mm) | 106.00 |
| Complete Insert Compatibility | DGN-UT/UA; DGN-W; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; GRIP; GRIP (Full Radius); HFPR/L; HFPR/L (Full Radius) |
