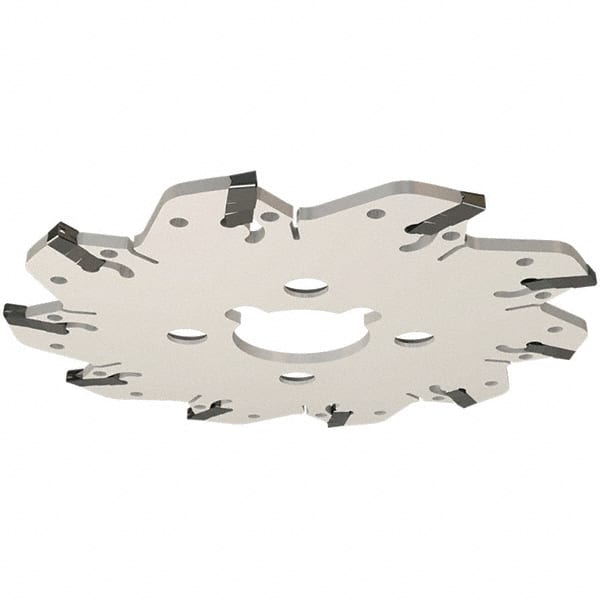

Iscar - Arbor Hole Connection, 0.132" Cutting Width, 1.14" Depth of Cut, 3.94" Cutter Diam, 1" Hole Diam, 6 Tooth Indexable Slotting Cutter - GM Toolholder, GIM, GIMY, GIP Insert, Right Hand Cutting Direction
Item #: 45372653
Brand: Iscar
Model #: 2301734
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Connection Type | Arbor Hole |
| Cutting Width (Decimal Inch) | 0.1320 |
| Maximum Depth of Cut (Decimal Inch) | 1.1400 |
| Cutter Diameter (Decimal Inch) | 3.9400 |
| Hole Diameter (Decimal Inch) | 1.0000 |
| Number of Teeth | 6 |
| Toolholder Style | GM |
| Series | CutGrip(GM-DG) |
| Insert Style | GIM; GIMY; GIP |
| Staggered Tooth | No |
| Number of Cutter Inserts | 6 |
| Cutting Direction | Right Hand |
| Insert Holding Method | Self Clamping |
| Maximum RPM | 800 |
| Minimum Cutting Width (Decimal Inch) | 0.1320 |
| Maximum Cutting Width (Decimal Inch) | 0.1710 |
| Radius | Yes |
| Cutting Radius (Inch) | 5/64 |
| Cutter Body Width (Decimal Inch) | 0.1260 |
| Complete Insert Compatibility1 | GIM 4; GIM 4C; GIM 4J; GIMY 404; GIP 4.00-0.00 |
