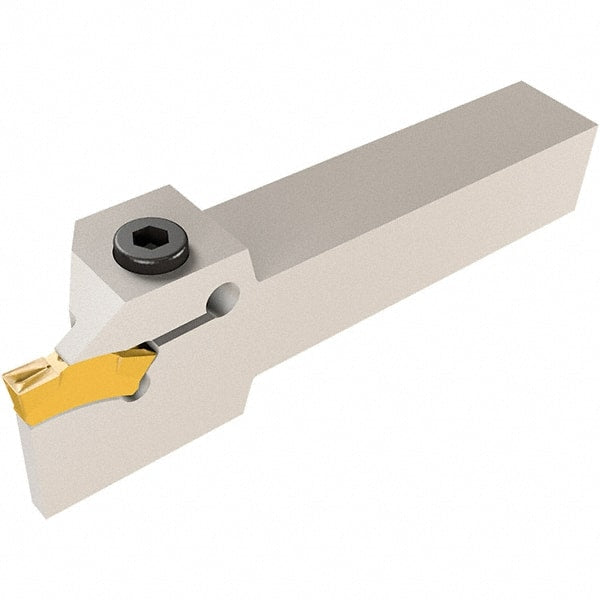

Iscar - TGD, External, Left Hand, 9mm Max Depth of Cut, 4 to 5mm Groove Width, Indexable Grooving Tool Holder - TGMF.. Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 125mm OAL
Item #: 45377744
Brand: Iscar
Model #: 2850098
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 9.00 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 5.00 |
| Overall Length (mm) | 125.00 |
| Toolholder Style | TGD |
| Insert Compatibility | TGMF.. |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Top Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 18.20 |
| Head Length (mm) | 32.20 |
| Shank Length (mm) | 92.80 |
| Complete Insert Compatibility | TGMF (Full Radius); TGMF/P |
