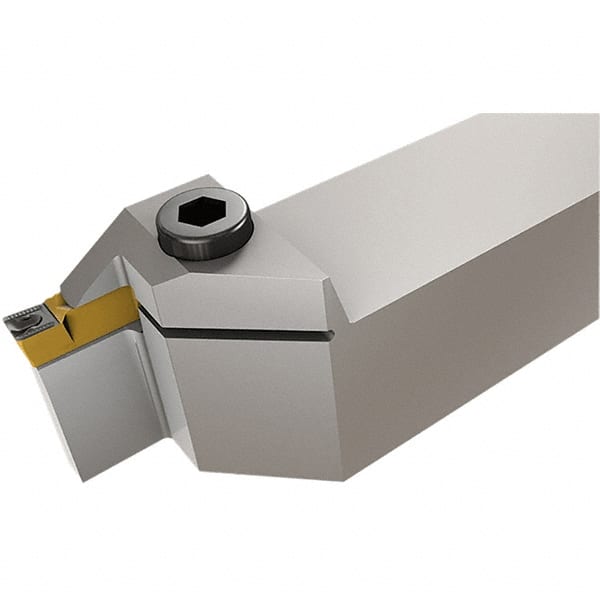

Iscar - HELI, External, Left Hand, 3 to 3.18mm Groove Width, Indexable Grooving Tool Holder - GRIP, HGN Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 140mm OAL
Item #: 45378429
Brand: Iscar
Model #: 2500509
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Minimum Groove Width (mm) | 3.00 |
| Maximum Groove Width (mm) | 3.18 |
| Overall Length (mm) | 140.00 |
| Toolholder Style | HELI |
| Insert Compatibility | GRIP; HGN |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Heli-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 18.80 |
| Head Length (mm) | 36.40 |
| Shank Length (mm) | 103.60 |
| Complete Insert Compatibility | GRIP; GRIP (Full Radius); HGN-C; HGN-J; HGN-UT |
