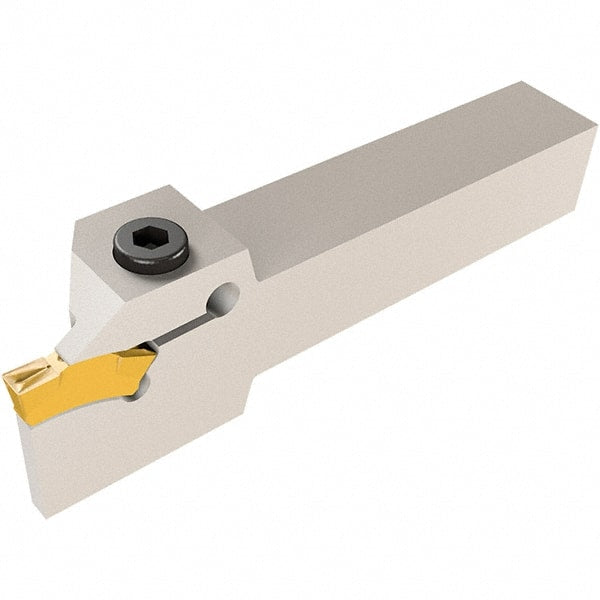

Iscar - TGD, External, Left Hand, 22mm Max Depth of Cut, 6 to 6.35mm Groove Width, Indexable Grooving Tool Holder - TGMF.. Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 150mm OAL
Item #: 45378981
Brand: Iscar
Model #: 2850104
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 22.00 |
| Minimum Groove Width (mm) | 6.00 |
| Maximum Groove Width (mm) | 6.35 |
| Overall Length (mm) | 150.00 |
| Toolholder Style | TGD |
| Insert Compatibility | TGMF.. |
| Shank Height (mm) | 32.00 |
| Shank Width/Diameter (mm) | 32.00 |
| Series | Top Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Profiling; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 29.50 |
| Head Length (mm) | 43.00 |
| Shank Length (mm) | 107.00 |
| Complete Insert Compatibility | TGMF (Full Radius); TGMF/P |
