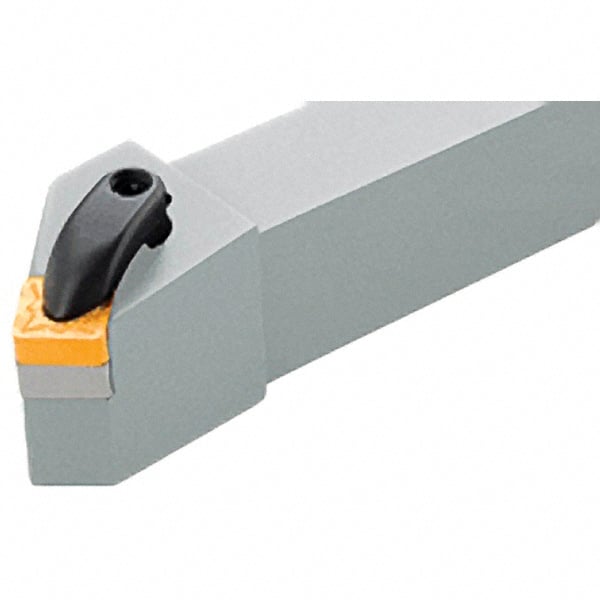

Iscar - DSSN, Right Hand Cut, 45° Lead Angle, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, SNM.. Insert Compatibility, Series Isoturn
Item #: 45380714
Brand: Iscar
Model #: 3602809
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Right Hand |
| Toolholder Style | DSSN |
| Rake | Negative |
| Series | Isoturn |
| Lead Angle | 45 |
| Shank Width (mm) | 32.00 |
| Shank Height (mm) | 32.00 |
| Overall Length (mm) | 170.00 |
| Insert Compatibility | SNM.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Head Length (mm) | 38.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.7500 |
