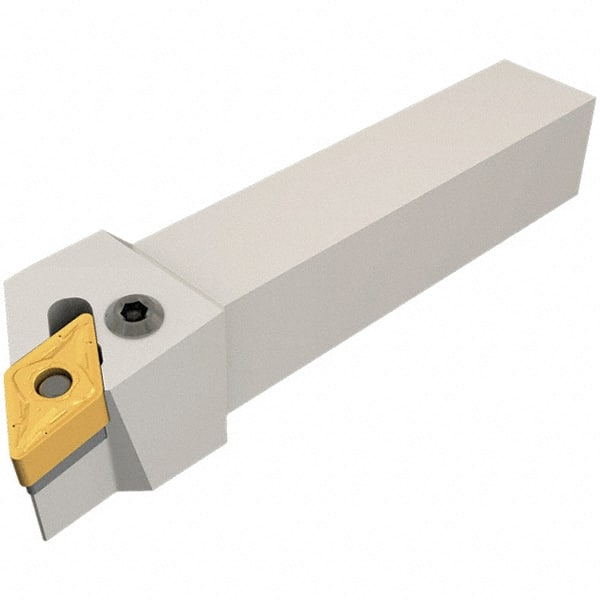

Iscar - PDJN, Left Hand Cut, 32mm Shank Height x 32mm Shank Width, Negative Rake Indexable Turning Toolholder - 170mm OAL, DN.. Insert Compatibility, Series Isoturn
Item #: 45382678
Brand: Iscar
Model #: 3600697
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Hand of Holder | Left Hand |
| Toolholder Style | PDJN |
| Rake | Negative |
| Series | Isoturn |
| Shank Width (mm) | 32.00 |
| Shank Height (mm) | 32.00 |
| Overall Length (mm) | 170.00 |
| Insert Compatibility | DN.. |
| Multi-Use Tool | No |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 40.00 |
| Head Length (mm) | 34.00 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
