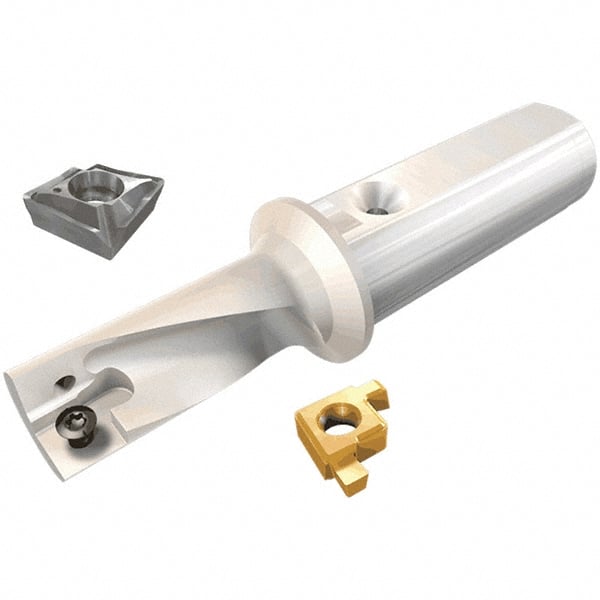

Iscar - 18mm Max Drill Depth, 2.25xD, 8mm Diam, Indexable Insert Drill - 1 Insert, 12mm Shank Diam, Straight Shank
Item #: 45382736
Brand: Iscar
Model #: 3299216
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Drill Style | DR |
| Drill Diameter (mm) | 8.00 |
| Drill Diameter (Decimal Inch) | 0.3150 |
| Maximum Drill Depth (mm) | 18.00 |
| Shank Type | Straight |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Cutting Direction | Right Hand |
| Through Coolant | Through Coolant |
| Drill Depth by Diameter Ratio | 2.25xD |
| Number of Drill Inserts | 1 |
| Overall Length/Projection (mm) | 60.00 |
| Insert Compatibility | XCMT-MF |
| Body Length (mm) | 22.00 |
| Shank Length (mm) | 38.00 |
| Series | Multifunction Tools |
