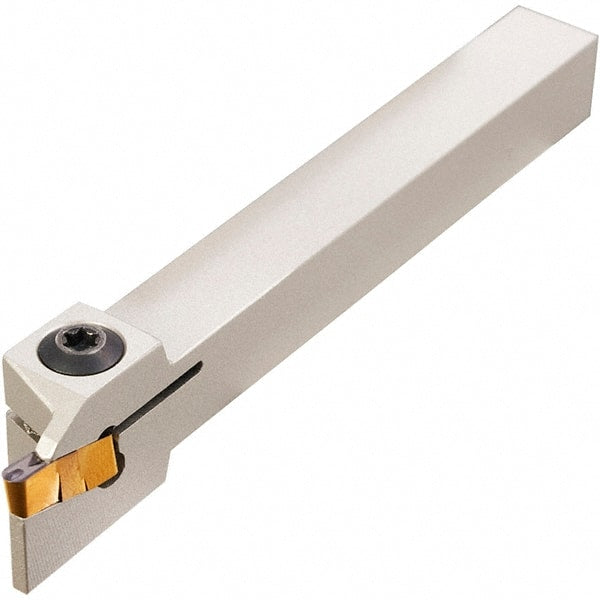

Iscar - GHD, External, Left Hand, 12mm Max Depth of Cut, 5 to 6.4mm Groove Width, Indexable Grooving Tool Holder - GIF, TIP Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 120mm OAL
Item #: 45383015
Brand: Iscar
Model #: 2800736
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (mm) | 5.00 |
| Maximum Groove Width (mm) | 6.40 |
| Overall Length (mm) | 120.00 |
| Toolholder Style | GHD |
| Insert Compatibility | GIF; TIP |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting |
| Insert Holding Method | Screw |
| Back of Bar to Cutting Edge (mm) | 17.90 |
| Head Length (mm) | 29.00 |
| Complete Insert Compatibility | GIF; GIF-E (W=4-6); TIP-MT; TIP-P-ISO; TIP-WT |
