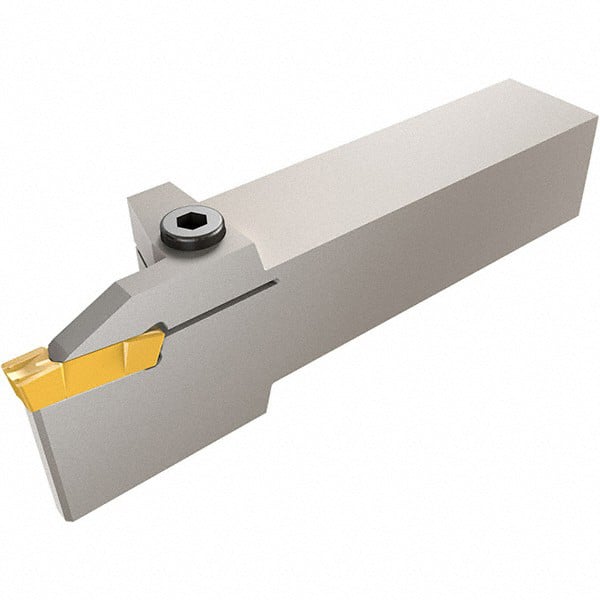

Iscar - GHD, External, Left Hand, 25mm Max Depth of Cut, 6.6 to 8.3mm Groove Width, Indexable Grooving Tool Holder - GD.., GI.. Insert Compatibility, 32mm Shank Height, 32mm Shank Width, 170mm OAL
Item #: 45383049
Brand: Iscar
Model #: 2800112
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 25.00 |
| Minimum Groove Width (mm) | 6.60 |
| Maximum Groove Width (mm) | 8.30 |
| Overall Length (mm) | 170.00 |
| Toolholder Style | GHD |
| Insert Compatibility | GD..; GI.. |
| Shank Height (mm) | 32.00 |
| Shank Width/Diameter (mm) | 32.00 |
| Series | Cut Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Parting; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 29.00 |
| Head Length (mm) | 40.00 |
| Complete Insert Compatibility | GDMF; GDMU; GDMY-F; GIF-E; GIPA/GIDA 8 (Full Radius) |
