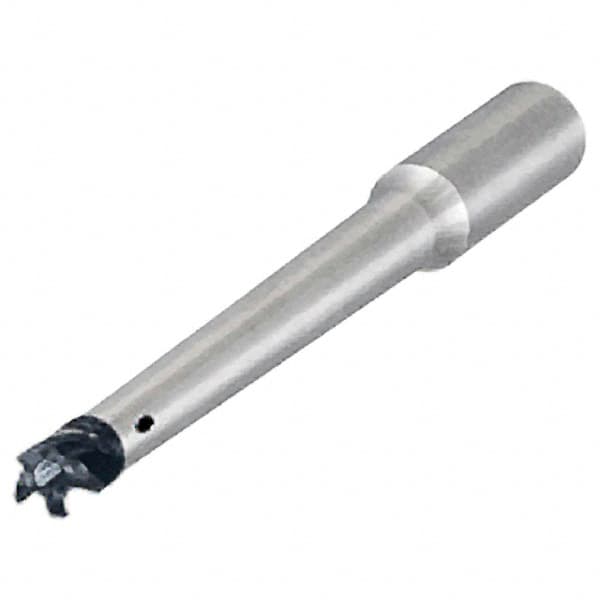

Iscar - Multimaster 12mm 89° Shank Milling Tip Insert Holder & Shank - T05 Neck Thread, 130mm OAL, Tungsten MM S-D Tool Holder
Item #: 45383247
Brand: Iscar
Model #: 3104450
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 89 Degree Shank |
| Shank Diameter (mm) | 12.00 |
| Shank Diameter (Decimal Inch) | 0.4724 |
| Neck Thread Size | T05 |
| Toolholder Material | Tungsten |
| Overall Length (mm) | 130.00 |
| Overall Length (Decimal Inch) | 5.1181 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 3.0080 |
| Effective Length (mm) | 80.00 |
| Effective Length (Decimal Inch) | 3.1496 |
| Milling Tip Style | MM EB, MM EC-4, MM HBR, MM HCR, MM TS-N |
| Shank Shape | Straight |
| Toolholder Style | MM S-D |
